American Fyre Designs Eclipse 23 Inch Round Glass Fiber Reinforced Concrete Fire Urn in Cafe Blanco - 520-CB-11-M2C
American Fyre Designs Eclipse 23 Inch Round Glass Fiber Reinforced Concrete Fire Urn in Cafe Blanco - 520-CB-11-M2C
Couldn't load pickup availability
Order before noon Pacific Time for same-day shipping.*
Estimated delivery within the contiguous US: 2–3 business days after shipping.
*Monday–Friday, excluding holidays.
Shipping details
Orders placed before 12:00 p.m. Pacific Time Monday–Friday ship the same day, excluding holidays. Orders placed after the cutoff, on weekends, or on holidays ship the next business day.
Delivery within the contiguous US typically takes 2–3 business days after shipping. Saturdays, Sundays, and holidays do not count toward this estimate.
Orders with a subtotal over $199.99 before tax qualify for free base shipping to US destinations. Orders with a subtotal of $199.99 or less before tax have a $29.99 base shipping charge per order.
Additional shipping charges may apply to Alaska, Hawaii, and US territories. We will notify you of any additional charge on a case-by-case basis before shipping. See our shipping policy for details and delivery estimates for these destinations.
Description

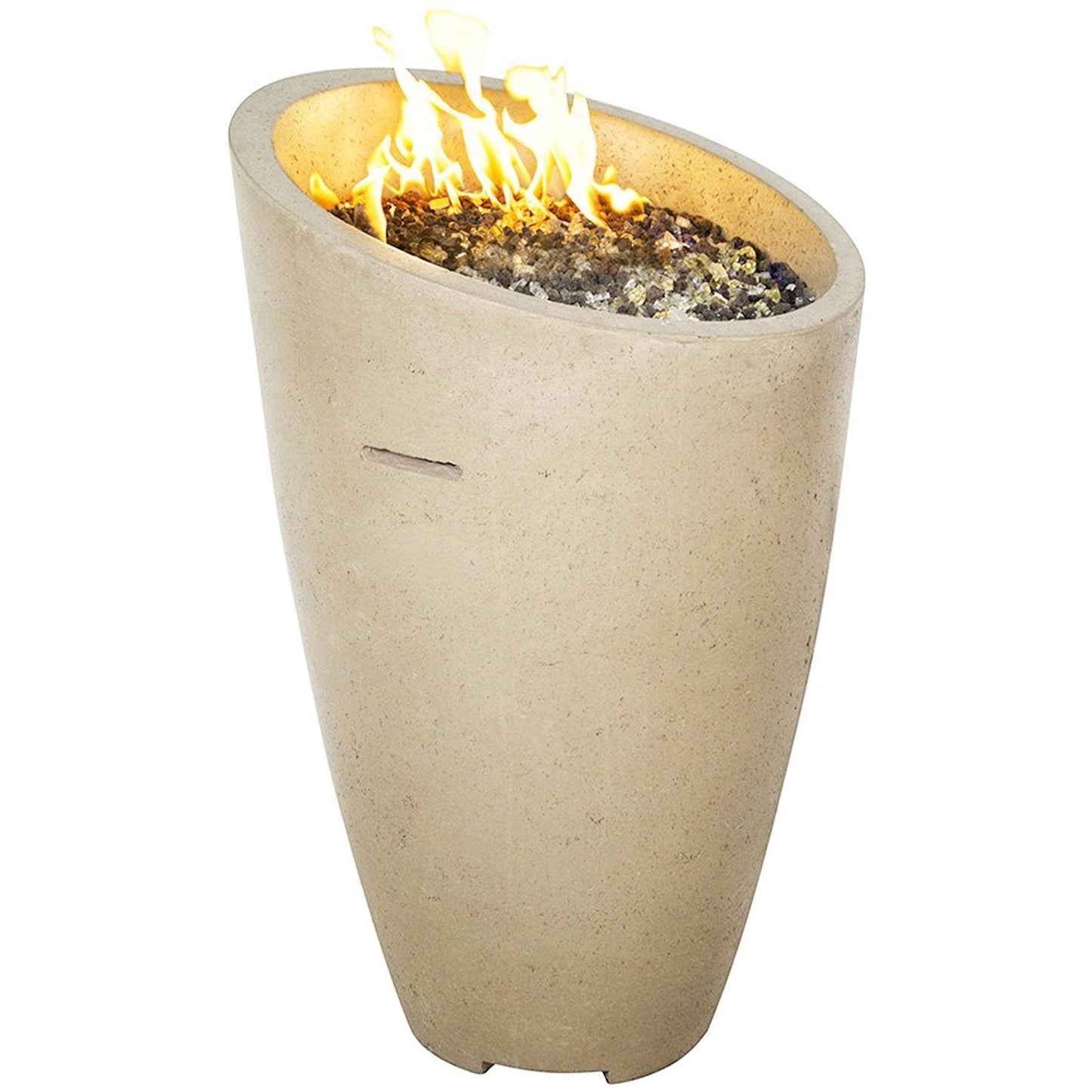

The American Fyre Designs Eclipse is an outdoor gas fire urn with a tall 37½-inch profile. It measures 23" dia x 37½" H and carries a 12" stainless steel star burner rated at 60,000 BTU, in natural gas or propane. This listing is the Cafe Blanco finish, handcrafted in the USA.
It lights with a push-button spark igniter and a manual flame-sensing control valve. The igniter runs on one AA battery, so you don't need an outdoor outlet, and the knob sets the flame height. The propane version keeps a 20 lb cylinder out of sight inside the base, behind the storage door; the cylinder itself is not included.
Plan these before you order: the propane cylinder, which is not included, a gas line with a shut-off valve within 6 feet, and 3 feet of open space on every side with 6 feet clear above. See more American Fyre Designs fire features.

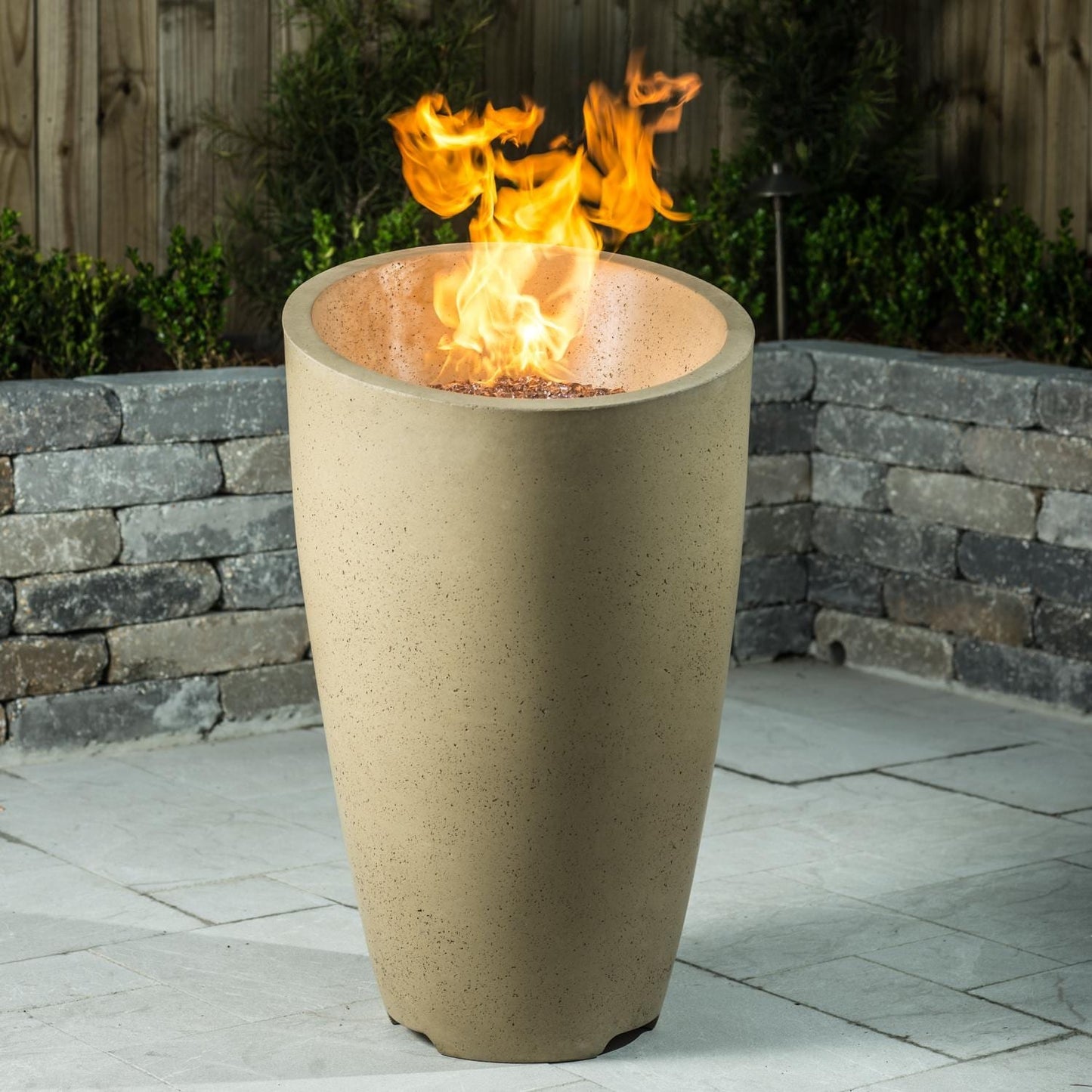

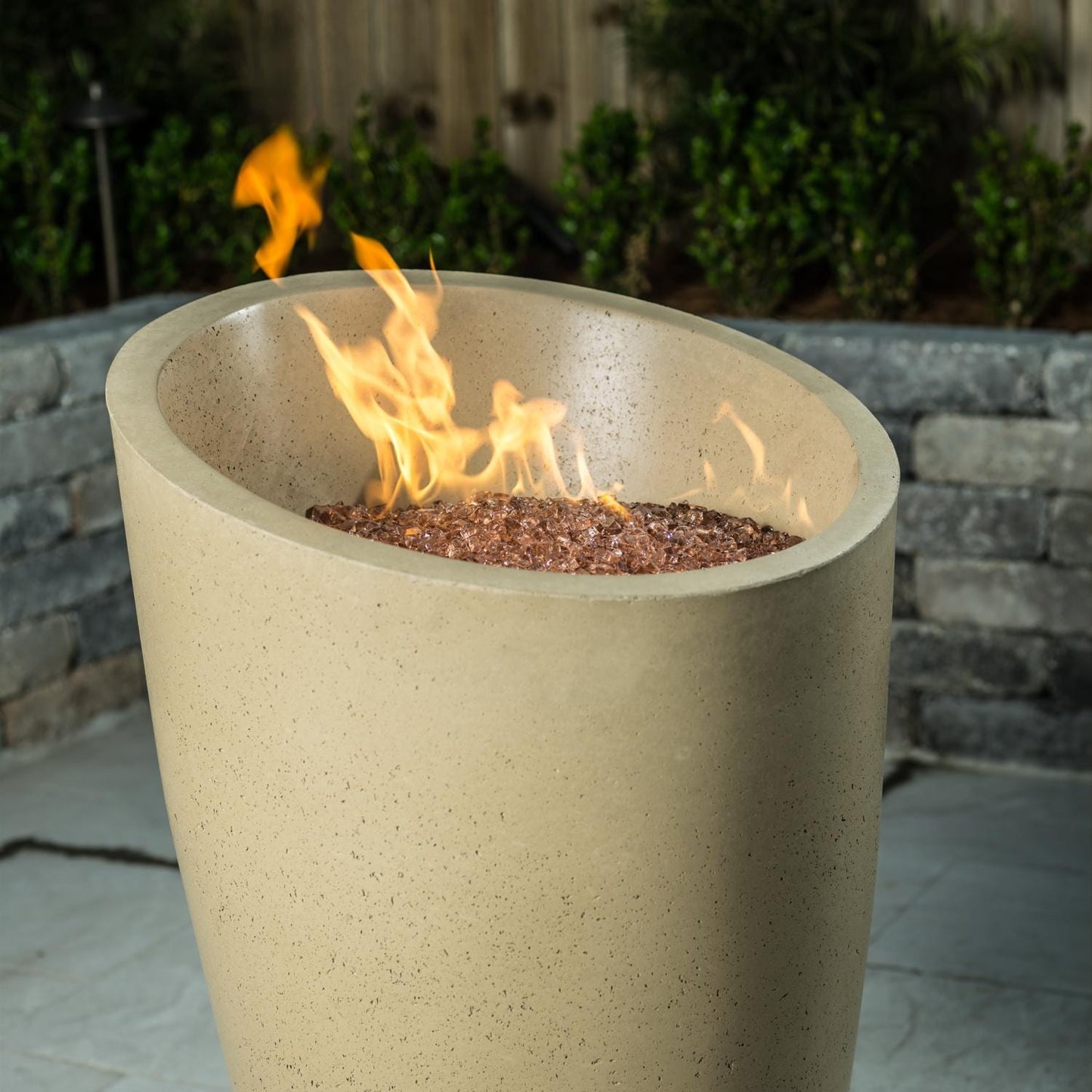

The first photo shows the Cafe Blanco finish. Installed photos may show another finish, and each piece is handcrafted, so color and texture vary slightly.
Features
- 60,000 BTU, 12" stainless steel star burner: a star burner that spreads flame across the media.
- Push-button spark ignition, no electrical hookup: one AA battery powers the igniter.
- Adjustable flame: turn the control knob to raise or lower the flame.
- Field-convertible fuel: AFD's certified kit changes the gas type if your supply changes (installed by a qualified technician).
- Glass fiber reinforced concrete (GFRC): handcrafted in the USA, finished in Cafe Blanco.
- Media options: AFD specifies 20 lb of lava granules or 20 lb of fire glass or gems for this urn.
- Certified: ANSI Z21.97 / CSA 2.41 for outdoor decorative gas appliances.
Specifications
| Brand | American Fyre Designs |
|---|---|
| Model | 520-CB-11-M2NC / 520-CB-11-M2PC |
| Series | Eclipse |
| Type | Outdoor gas fire urn |
| Dimensions | 23" dia x 37½" H |
| Fuel | Natural gas or propane (choose at checkout); field-convertible with an AFD kit |
| Heat output | 60,000 BTU |
| Burner | 12" stainless steel star |
| Ignition | Manual flame-sensing control valve with push-button spark igniter |
| Power | 1 AA battery (igniter); no electrical hookup |
| Finish | Cafe Blanco |
| Material | Glass fiber reinforced concrete (GFRC) |
| Recommended media | 20 lb lava granules or coals, or 20 lb fire glass or gems |
| Propane tank | Fits inside the base; 20 lb cylinder, not included |
| Certification | ANSI Z21.97 / CSA 2.41; outdoor use only |
What's included
- Eclipse fire urn with burner and control valve
- 24" LP regulator and hose assembly (AFD 5110-07), propane version
- AA battery for the igniter
Sold separately
- Propane tank
- Vinyl cover (AFD 8141A)
- Fire glass or gems, 20 lb recommended
- Accent media: Fyre Spheres, river rock, Creekstones, wood chunks
- Gas conversion kits (AFD MCK-01-NAT to natural gas, MCK-01-LP to propane)
Not sure which of these you need? Ask us and we'll help you match the parts to your setup.
Installation planning
- Outdoor use only. Keep at least 3 ft from any construction on each side and 6 ft from anything overhead. Over time, soot can collect on a ceiling above the unit.
- Set it on a hard, level surface. AFD permits a combustible surface under the unit, but keep it out of traffic areas and away from combustibles.
- Use only a cylinder with an overfilling prevention device and vapor withdrawal, and never store a spare cylinder under or near the unit.
- A fixed gas line needs an easily accessible shut-off valve (not included) within 6 ft of the unit. Natural gas inlet pressure is 5 to 10.5 in. w.c.; propane is 11 to 13 in. w.c. AFD recommends a sediment trap where applicable. Above 2,000 ft elevation, check with your gas supplier first.
- Have it installed by an NFI-certified or other qualified installer, service agency or gas supplier, following local codes, and have it inspected at least once a year.
- Plan for two or more people. Some components are heavy and have sharp edges, so wear gloves.
- Don't run it in heavy rain or high wind. AFD warns that wind can push flame onto the finish and crack or discolor it. Never burn wood or other solid fuel, and never leave it burning unattended.
- Care: wipe up spills right away, use coasters, clean with mild soap and water, and apply a masonry sealer once a year. Concrete develops a patina outdoors; AFD does not treat spotting or hairline cracks as defects. Keep it covered when cool and not in use.
Warranty
AFD limited warranty: 3 years on the GFRC fire urn and burner; 1 year on electrical components, valves, accessories and controls (batteries, wind guards and screens excluded). It covers the original purchaser, single-family residential use in the US or Canada, with proof of purchase and installation by a qualified professional. A separate warranty applies to commercial or multi-user settings. Labor is not covered. Damage from high wind, from burning wood or any fuel other than natural gas or propane, and normal outdoor rust, corrosion or discoloration are excluded. Full terms are on page 32 of the manual, and you can register the product at rhpeterson.com.
Manuals and documents
- Installation & Owner's Manual, Outdoor Fire Urns (L-H2-065, PDF)
- Gas Conversion Kit, manual flame sensing models (L-H2-059, PDF)
- Fire Unit Cover instructions (L-H2-015, PDF)
- American Fyre Designs product page
