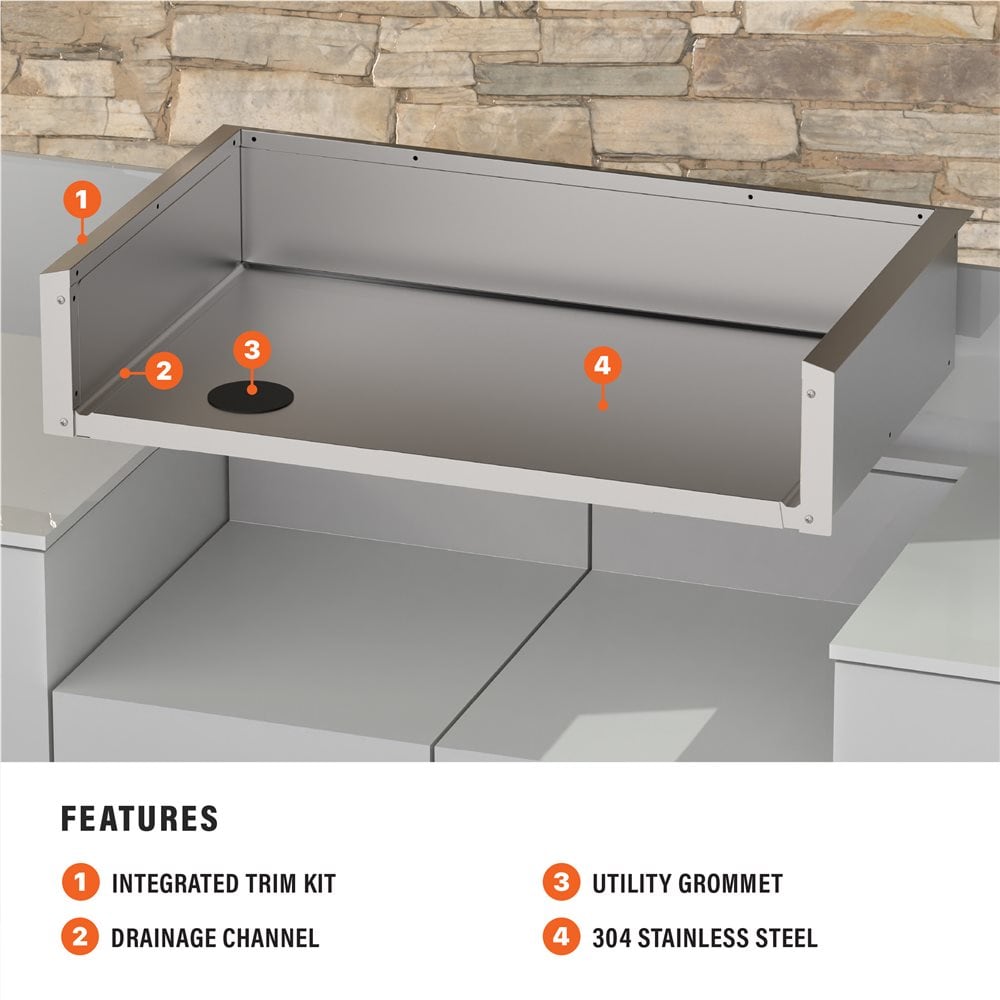

Features
- Required for combustible islands: lets the Blackstone drop-in griddle be installed in a wood-framed or other combustible enclosure.
- 304 stainless steel: the full jacket body.
- Countertop flange: ties the jacket into the countertop and finishes the edge of the opening.
- Water drainage system: lets water drain out of the jacket.
- Cable and utility routing port: a path for the gas supply and power cable to reach the griddle.
Specifications
| Brand | Blackstone |
|---|---|
| Model | 6430 |
| Type | Insulating jacket for a drop-in griddle |
| Designed for | Blackstone 4-burner drop-in griddle, natural gas or propane (confirm your model with us) |

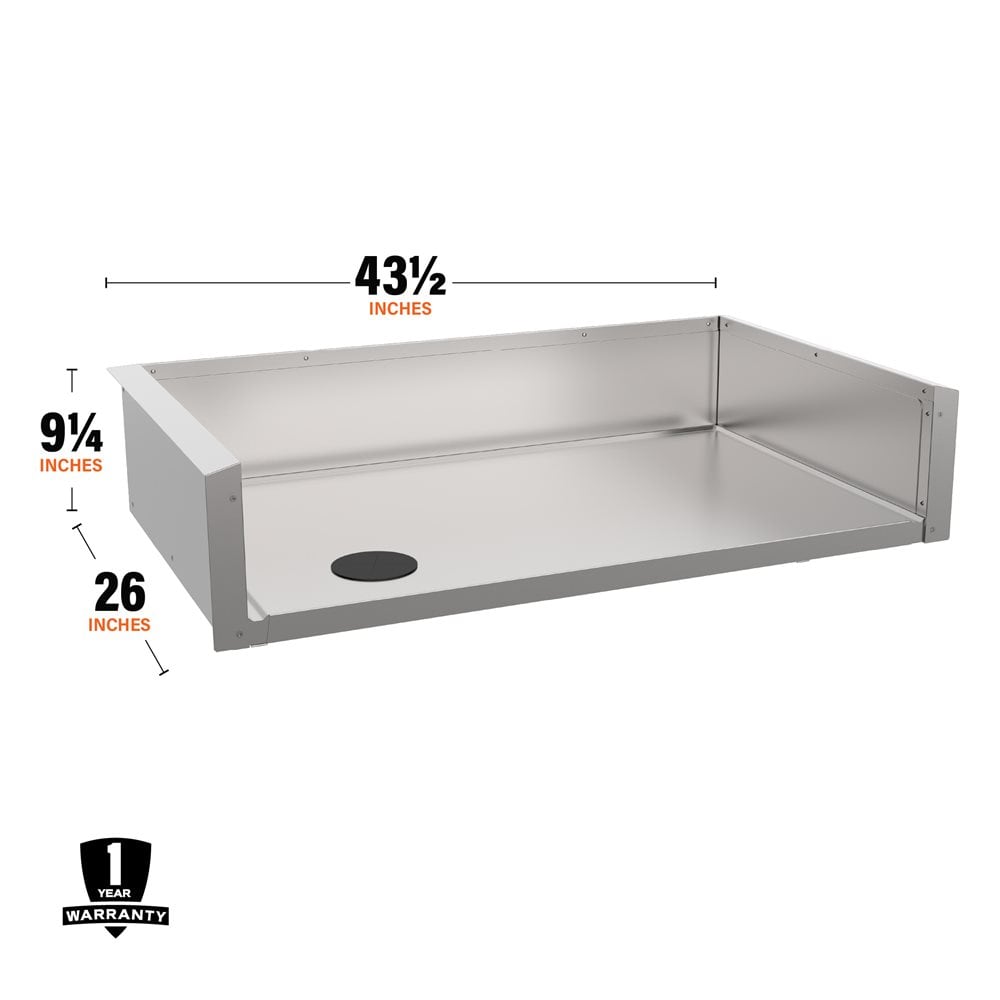

| Dimensions listed by Blackstone | 43.344" W x 26.09" D x 9.16" H |
| Countertop cut-out | Not published by Blackstone: confirm with us before cutting |
| Material | 304 stainless steel |
| Countertop | Countertop flange |
| Drainage | Water drainage system |
| Utilities | Cable and utility routing port |
| Support | Requires substructure support |
| Use | Required to install the drop-in griddle in a combustible enclosure |
| Warranty | 3 years (Blackstone) |
What's included
- Insulating jacket (6430) with countertop flange
Not included: the drop-in griddle.
Sold separately
- Blackstone 4-burner drop-in griddle, propane or natural gas: ask us which model this jacket fits.
Installation planning
- When you need it: Blackstone requires the jacket whenever the drop-in griddle goes into a combustible enclosure, such as a wood-framed outdoor kitchen or BBQ island.
- Support: Blackstone requires substructure support under the jacket.

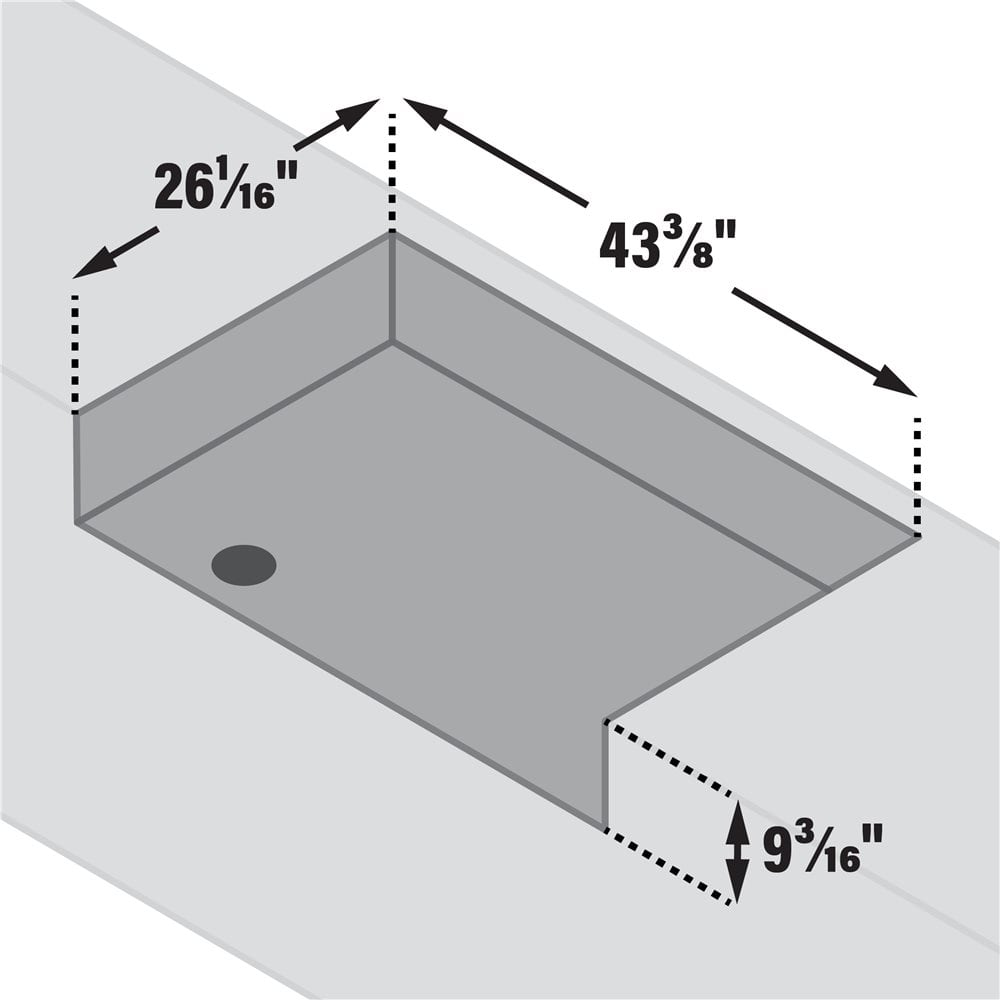

- Opening: Blackstone lists the jacket at 43.344" W x 26.09" D x 9.16" H but publishes no cut-out. Confirm the opening with us, or against the griddle's own instructions, before cutting the countertop.
- Utilities: plan the gas line and power cable to come in through the jacket's routing port.
Warranty
Blackstone lists a 3-year warranty for this jacket. Blackstone's warranty covers the original purchaser in the United States, for domestic use only (not club, institutional or commercial use). You establish the warranty period with your dated sales receipt, so keep it. Damage from accident, negligence, alteration, abuse or misuse, and repairs or alterations made outside the factory without Blackstone's written consent, are not covered. Report a defect to Blackstone within the warranty period: Blackstone repairs or replaces the defective part. Blackstone's warranty page has the full terms.
Manuals and documents
- Blackstone 36" Drop-in Griddle Insulating Jacket product page (SKU 6430)
- Blackstone warranty terms
- Blackstone support
