Features
- 36-inch-deep canopy: covers more of the grilling surface, so it captures more smoke and can hang higher for a clearer work area.

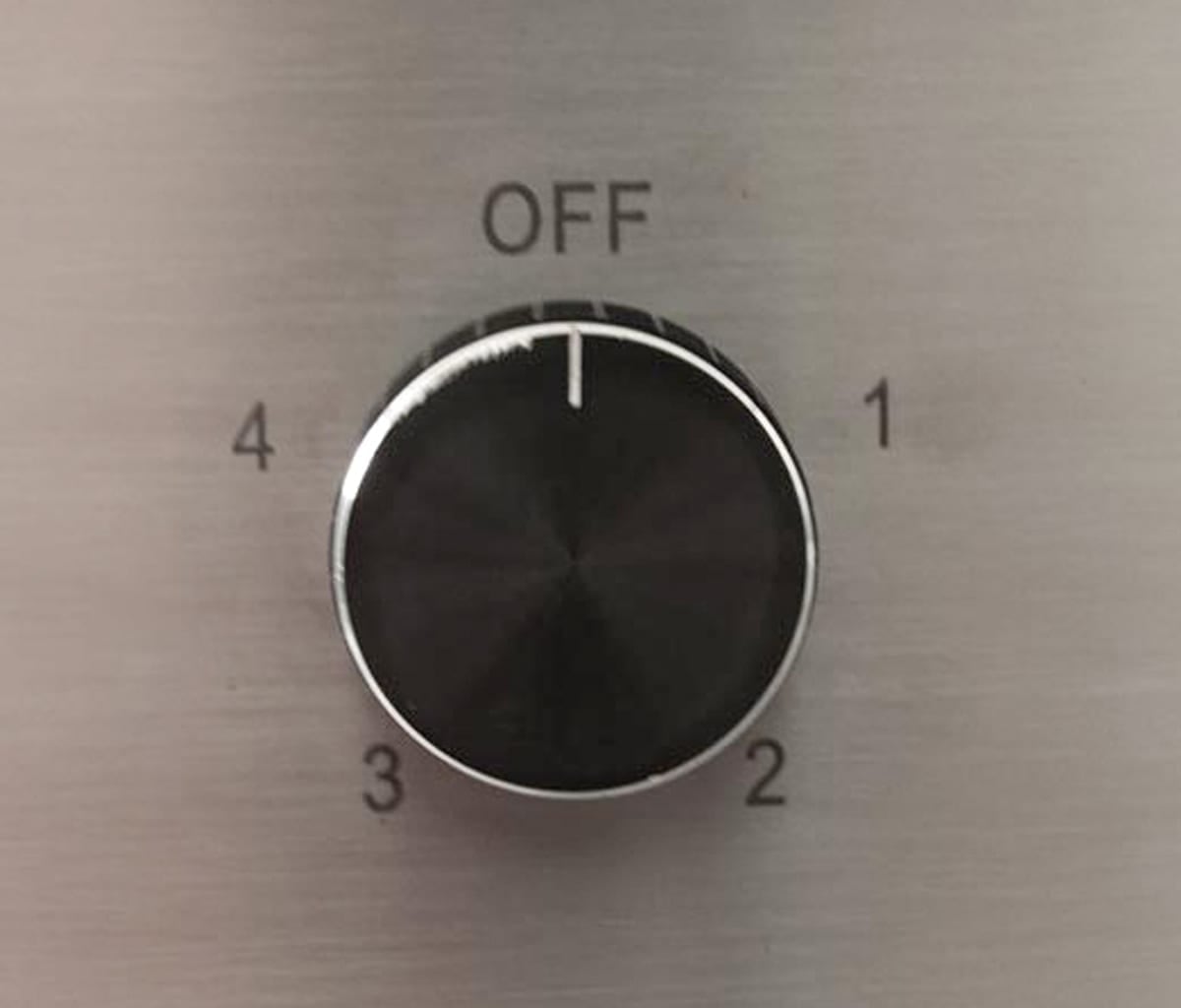

- Two 1,000 CFM, 4-speed blowers: independently controlled, so you can run one or both at the speed the cook needs.

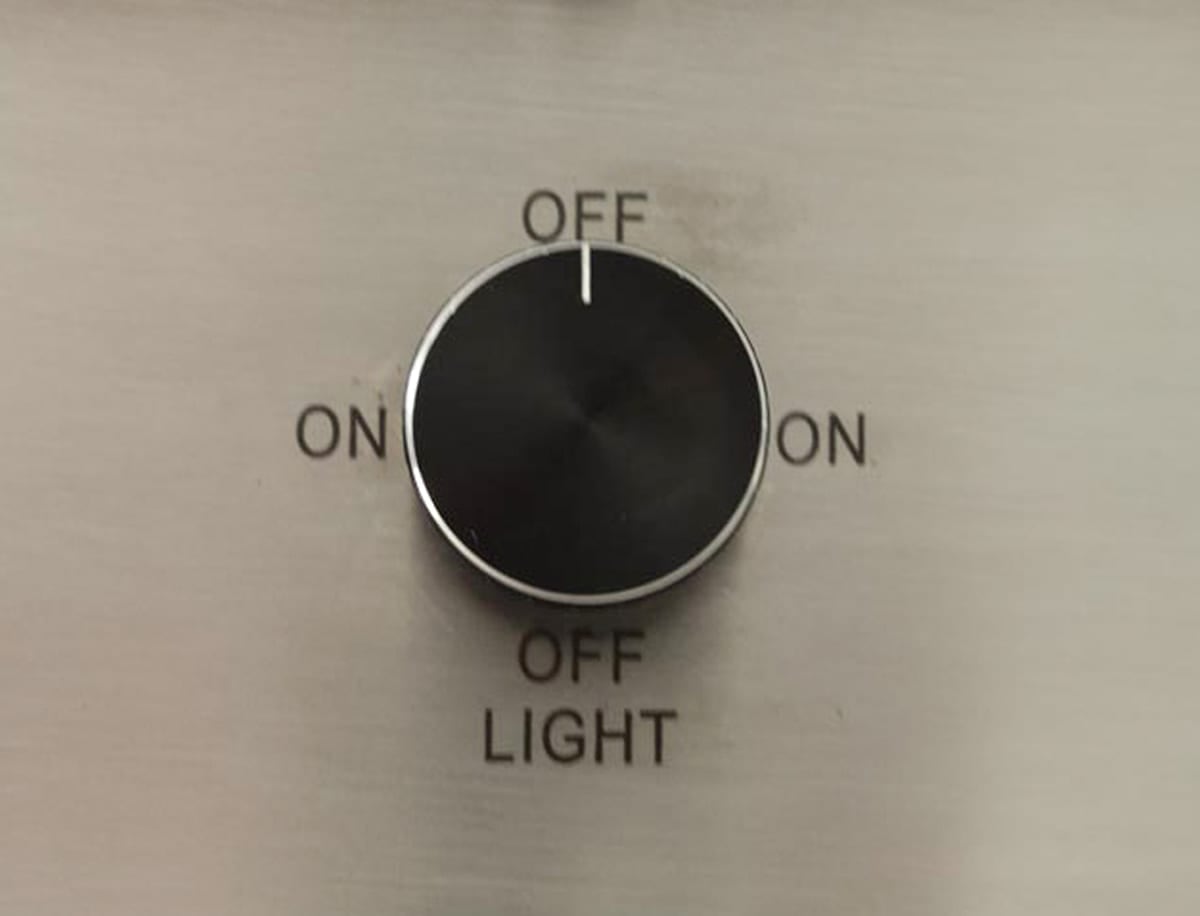

- Halogen task lighting: 4 halogen lights with 3 selectable color temperatures light the grill at night.

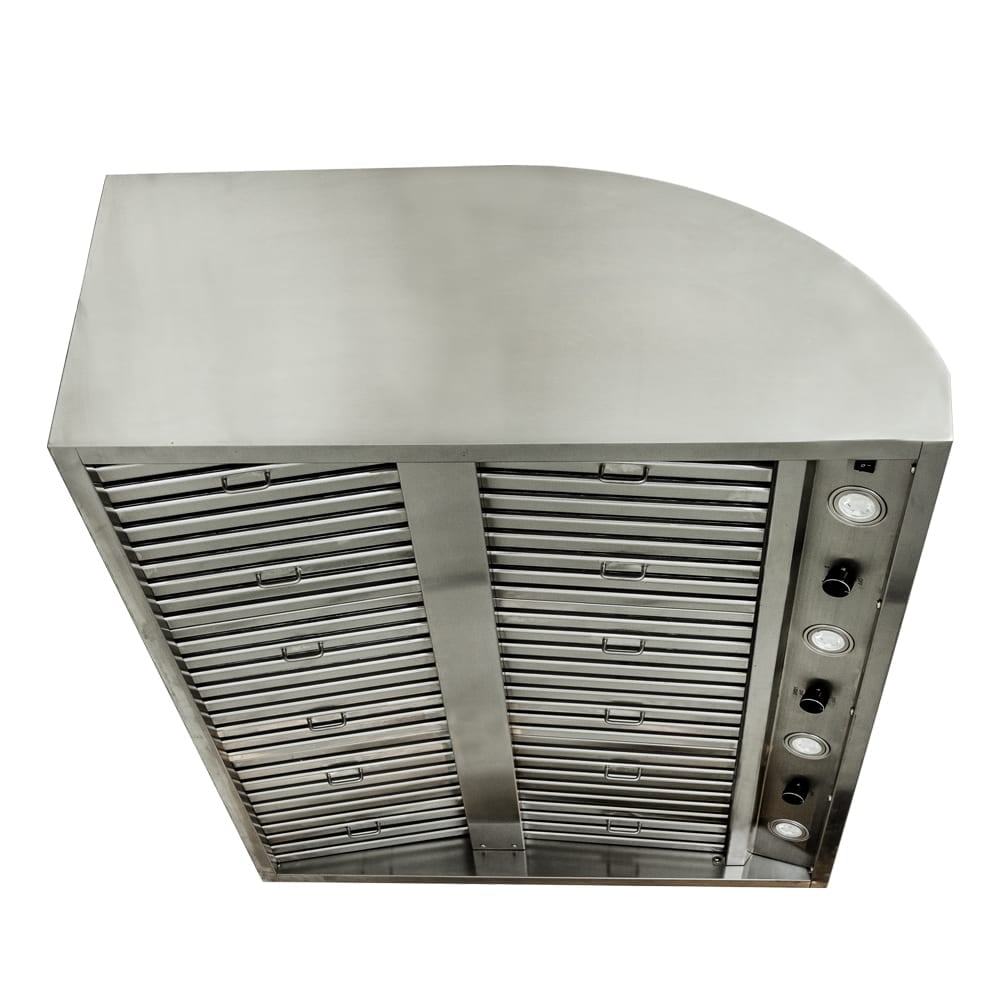

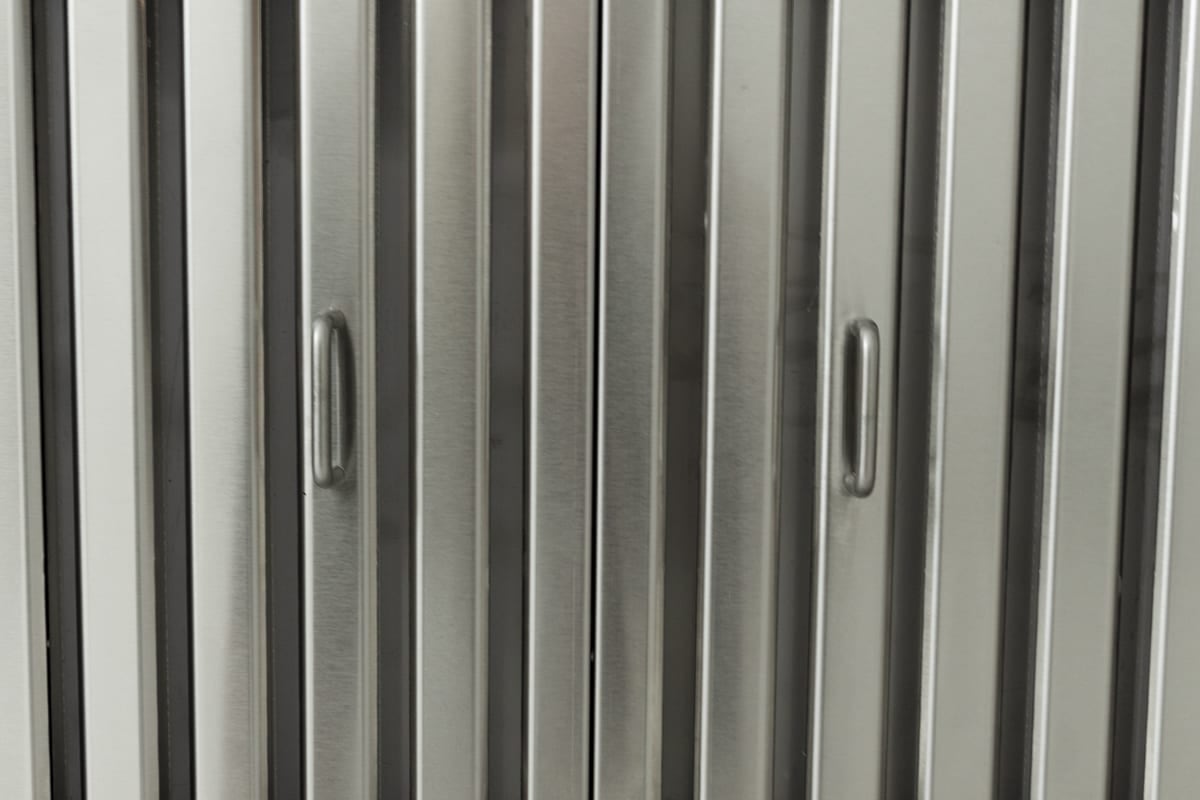

- Dishwasher-safe baffle filters: commercial-style stainless baffles trap grease before it reaches the ducts.
- Grease-free, lighted controls: redesigned knobs for easier adjustment, with a lighted facing.
- Service-friendly design: laid out for easy routine maintenance and servicing.
Specifications
| Brand | Blaze |
|---|---|
| Model | BLZ-48-VHOOD2 |
| Type | 48-inch outdoor vent hood, canopy style |
| Generation | Current model (VHOOD2); replaces BLZ-48-VHOOD |
| Overall dimensions | 48" W x 36" D x 18" H |
| Blowers | 2 internal blowers, independently controlled |
| Airflow | 1,000 CFM per blower |
| Fan speeds | 4 |
| Exhaust outlets | 2 outlets, each for 8-inch duct |
| Lighting | 4 halogen lights, 3 selectable color temperatures |
| Controls | Grease-free knobs with lighted facing |
| Filters | Commercial-style stainless steel baffle filters, dishwasher-safe |
| Construction | Stainless steel, rounded canopy |
| Venting | Ducted to outdoors; reversible motors |
| Mounting height | 36-40" above the cooking surface (minimum 36") |
| Matching duct covers | BLZ-48-VHOOD-DCVR-12 (low ceiling, extends 12-22-1/2" H) and BLZ-48-VHOOD-DCVR-22 (high ceiling, extends 22-41" H); 48" W x 18" D |
| Warranty | 1 year, parts only (see below) |
What's included
- 48-inch vent hood with two blowers, lights and controls
- Stainless steel baffle filters
- Owner's manual
Blaze does not publish a full packing list for this hood.
Sold separately
- Blaze extendable duct cover BLZ-48-VHOOD-DCVR-12 (low ceiling, 12-22-1/2" H) or BLZ-48-VHOOD-DCVR-22 (high ceiling, 22-41" H): telescopes to hide the ducts between hood and ceiling.
- Two 8-inch metal duct runs and two exterior vent caps rated 1,000 CFM each, with damper and screen (from your installer)
Installation planning
- Height: mount the hood 36-40" from the cooking surface to the bottom of the hood; the minimum is 36". Too low risks heat damage and fire; too high reduces capture.
- Ducting: the hood has two 8-inch outlets. Keep the two exhaust paths separate all the way out (combining them makes the blowers compete), and cap each with an exterior cap rated 1,000 CFM with a damper and screen.
- Duct runs: use metal or aluminum duct, as straight as possible, with no more than three 90° elbows and at least 24" of straight pipe between elbows. Seal every joint with foil or duct tape and caulk around the exterior caps. Vent through a side wall if you cannot go straight up.
- Never: vent into an attic or other enclosed area, use plastic or corrugated flexible duct, or use 4-inch laundry-type wall caps.
- Before mounting, plug the hood in and test the lights and fans. Blaze's documents do not list electrical ratings, so have an electrician confirm the outdoor outlet and circuit.
- Use: run the blowers whenever you cook; heat oil slowly on low or medium, never leave a burner unattended on high, and keep the filters clear. For a grease fire, smother it with a lid or metal tray and turn off the burner; never use water or move a burning pan.
Care: Clean the hood and baffle filters often so grease does not build up on the fans or filters; the baffles go in the dishwasher. Keep the ducts clean and avoid abrasive cleaners, which are excluded from the warranty.
Warranty
Blaze warrants the hood for one year from the original purchase date, parts only: Blaze repairs or replaces non-consumable parts that fail from manufacturing defects. Consumables such as light bulbs and filters are not covered, nor are natural wear, improper maintenance, abrasive cleaners, chips, dents or cracks from abuse, misuse or improper installation, and damage from accident, fire, flood or natural disaster. Customers outside the US should contact the selling dealer or distributor. Full terms are in the manual below.
Manuals and documents
- Blaze 48-inch outdoor vent hood manual, BLZ-48-VHOOD2 (PDF)
- Blaze product page: Outdoor Vent Hoods
- Blaze product catalog, January 2026 (PDF, hoods page 34, duct covers page 35)
