Outdoor GreatRoom Crystal Fire Plus 12 x 72-Inch Linear Stainless Steel Gas Burner - CFP1272-B

Features

• Crystal Fire Plus burner: CFP1272-B, in #304 stainless steel, with a fully adjustable flame under clear tempered glass gems.
• 72" x 12" footprint: long enough for a large linear fire table, built-in seating wall or fireplace. Takes about 30 lb of fire media.
• Propane or natural gas: ships set up for liquid propane and includes a natural gas conversion kit.
• Safety: a thermocouple safety valve shuts off the gas if the flame goes out. Listed to ANSI Z21.97-2017 / CSA 2.41-2017 for outdoor decorative gas appliances, tested by UL.
• Residential and commercial use: listed for both; Outdoor GreatRoom offers timers and emergency stops for commercial installations.

Compare all fire pit burners and components or shop Outdoor GreatRoom.

Specifications

Installation planning

• Outdoors only. The space can have walls on all four sides with no roof; a roof with two side walls; or a roof with three side walls as long as 30% of the side wall area stays permanently open.
• Clearance: 72" from the top of the burner to anything combustible overhead, 24" from the burner edge to combustible side walls, and 4" below the burner. Set it on a solid, level surface with clear walkways around it.
• Enclosure venting: an enclosure that houses a propane cylinder must have two equal vents near the top and two near the bottom, at least 90 degrees apart (10 sq. in. each for a 20 lb cylinder). For a hard-piped enclosure, vents are recommended: near the top for natural gas, near the bottom for propane. Add drainage and a vapor barrier underneath.
• Gas connection: installation and repair should be done by a qualified service technician; Outdoor GreatRoom recommends NFI-certified gas professionals. Use two wrenches on every fitting.
• Natural gas conversion: the burner ships set for propane. Fit the included conversion parts before connecting it to a natural gas line.
• Leak check: brush a non-corrosive leak-check solution on every connection and open the gas slowly; bubbles mean a leak. Rinse the solution off afterwards, then purge air from the line before the first lighting.

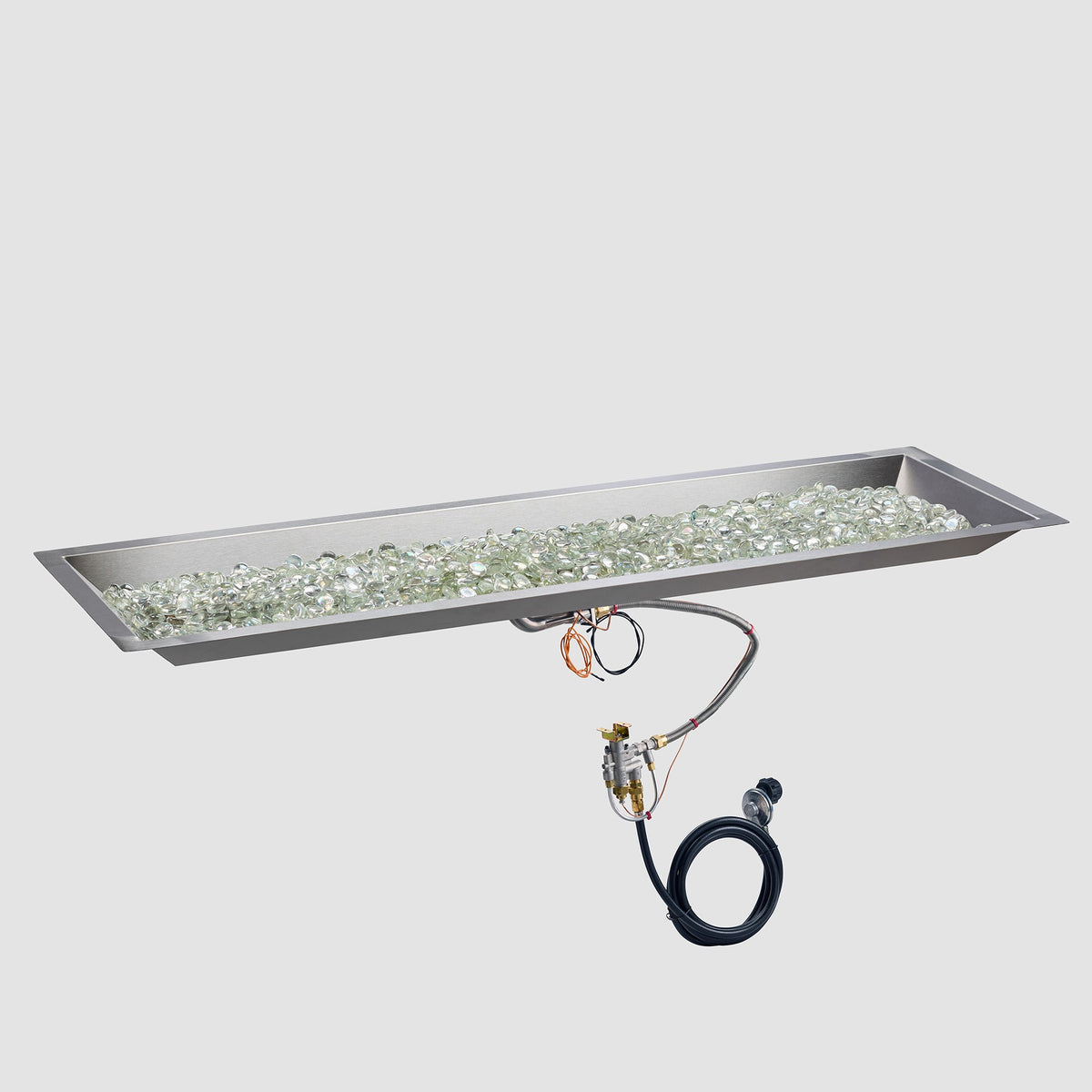

• Fire media: spread it evenly over the whole burner; it must be in place whenever the burner runs. Use Outdoor GreatRoom media in the amount it specifies, and don't overfill.

Lighting and use

• Lighting: with the control valve off, open the gas supply. Press and hold the sparker button and check for a spark, then turn the knob to LOW/IGNITION, push it fully in and hold it 3-5 seconds. The burner should stay lit when you release the knob.
• If it doesn't light: after 20 seconds, turn the valve off and wait 5 minutes for gas to clear before trying again. Never try to light it if you smell gas.
• Flame height: adjust between LOW and HIGH at any time. To turn it off, return the knob to LOW/IGNITION, push in and turn to OFF, then close the cylinder valve.
• Safety: keep children and pets away from hot surfaces and the flame, keep clothing and flammables clear, and never burn wood or other solid fuels in it.

Care and maintenance

• Annual service: have a qualified professional service it at least once a year: clear debris from the burner pan, clean the ignition electrode and thermocouple, and check the burner neck and orifice for obstructions.
• Cleaning: lift out the fire media, wash it in water with dish soap and let it dry on a towel. Blow debris out of the burner pan with compressed air; stainless trim can be polished with a stainless steel cleaner. The ignition wind guard discolors with heat, which is normal.

Warranty

The Outdoor GreatRoom Company's warranty starts on the date of purchase and covers defects in material and workmanship for installations in the United States and Canada:

• Crystal Fire Plus stainless steel burner: limited lifetime warranty of 10 years in a residential installation, 5 years in a commercial one
• Ignition and electronic components: 3 years residential, 1 year commercial
• Glass wind guards (sold separately): 90 days on the glass

It is for the original owner and the original installation and cannot be transferred. It is void after installation or use that doesn't follow the manuals or local codes, use of other fuels, unauthorized parts or modifications, misuse, or skipped maintenance. Contact the dealer you bought from first; Outdoor GreatRoom asks for written notice with proof of purchase and a chance to inspect the product before anything is removed or repaired. Register the product at outdoorrooms.com/product-registration; full terms are at outdoorrooms.com warranties.

Manuals and documents

• CFP1272-B spec sheet PDF, 1 page. Dimensions, burner, gas supply, clearances, listing
• Crystal Fire Plus linear burner manual PDF, 35 pages. Safety, clearances, enclosure venting, gas setup, lighting, maintenance, warranty
