Features
- Factory Blaze part: the hose and regulator assembly Blaze lists in its BCM grill parts lists.
- For 20 lb propane cylinders: Blaze's BCM grills are certified for a standard 20 lb cylinder with an overfill prevention device.
- 3/8" flare connection at the grill: tightens with a 3/8" open-end wrench, with no pipe sealant on the flare.
- Hand-tight cylinder connection: no tools on the cylinder side, so changing tanks is quick.
- Restores a safe supply line: replace the assembly when inspection finds cuts, wear, abrasion or leaks.
Specifications
| Brand | Blaze |
|---|---|
| Model | BLZ-LP-HOSE/REG |
| Type | LP hose and regulator assembly with connector (replacement part) |
| Fuel | Propane (LP) from a portable cylinder |
| Listed for | Blaze BCM gas grills BLZ-3BCM-LP and BLZ-4BCM-LP (BCM Series manual parts lists) |
| Cylinder | Standard 20 lb LP cylinder, 12 1/4" diameter x 18" high, right-hand connection threads, overfill prevention device (OPD) required |
| Grill connection | 3/8" flare, wrench-tightened, no pipe sealant |
| Cylinder connection | Hand-tightened (Blaze BCM manual references CGA 791) |
| LP pressure | Blaze requires an LP regulator set to 11" W.C. on LP appliances |
| Hose length | Not published by Blaze |
What's included

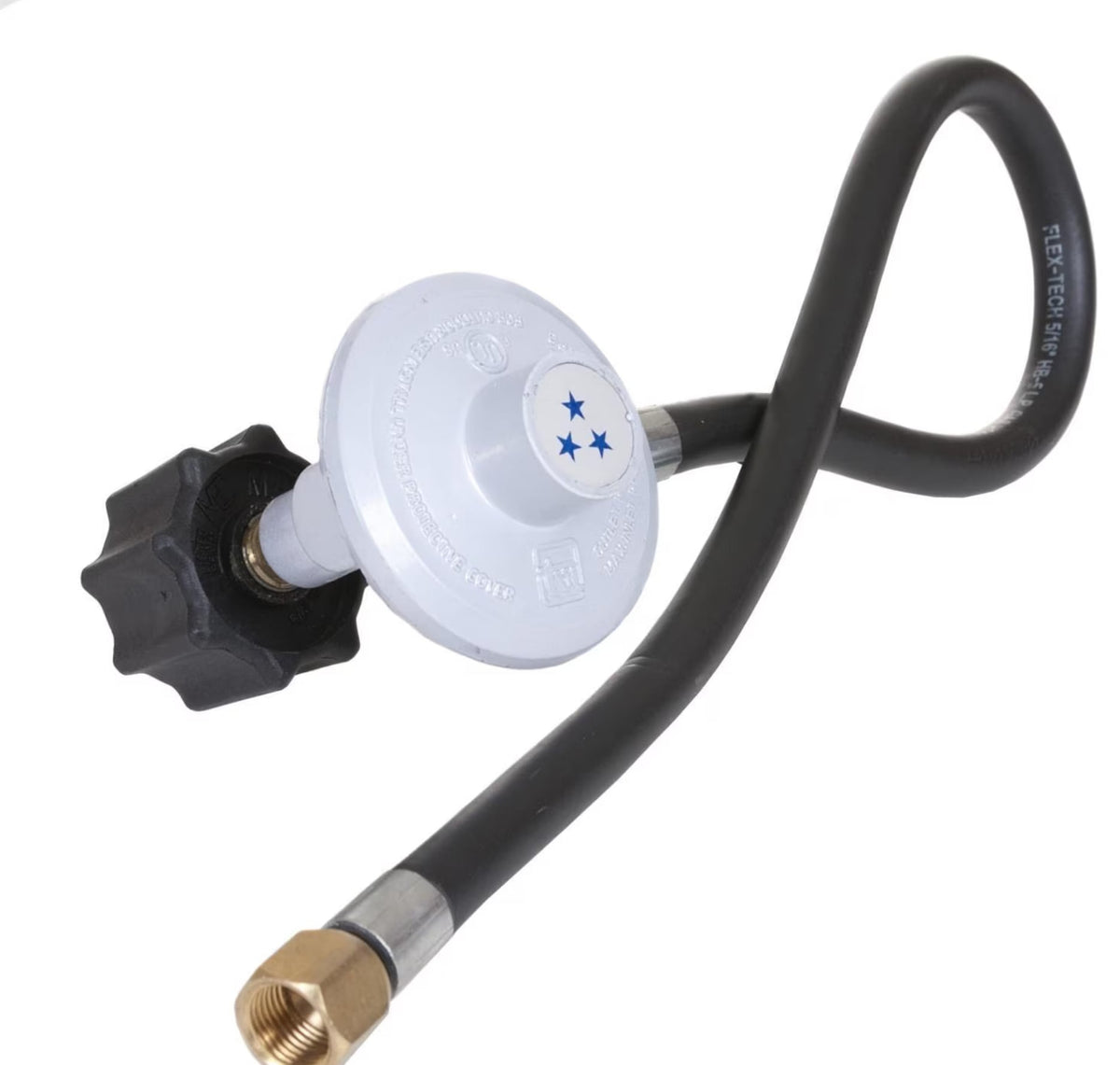

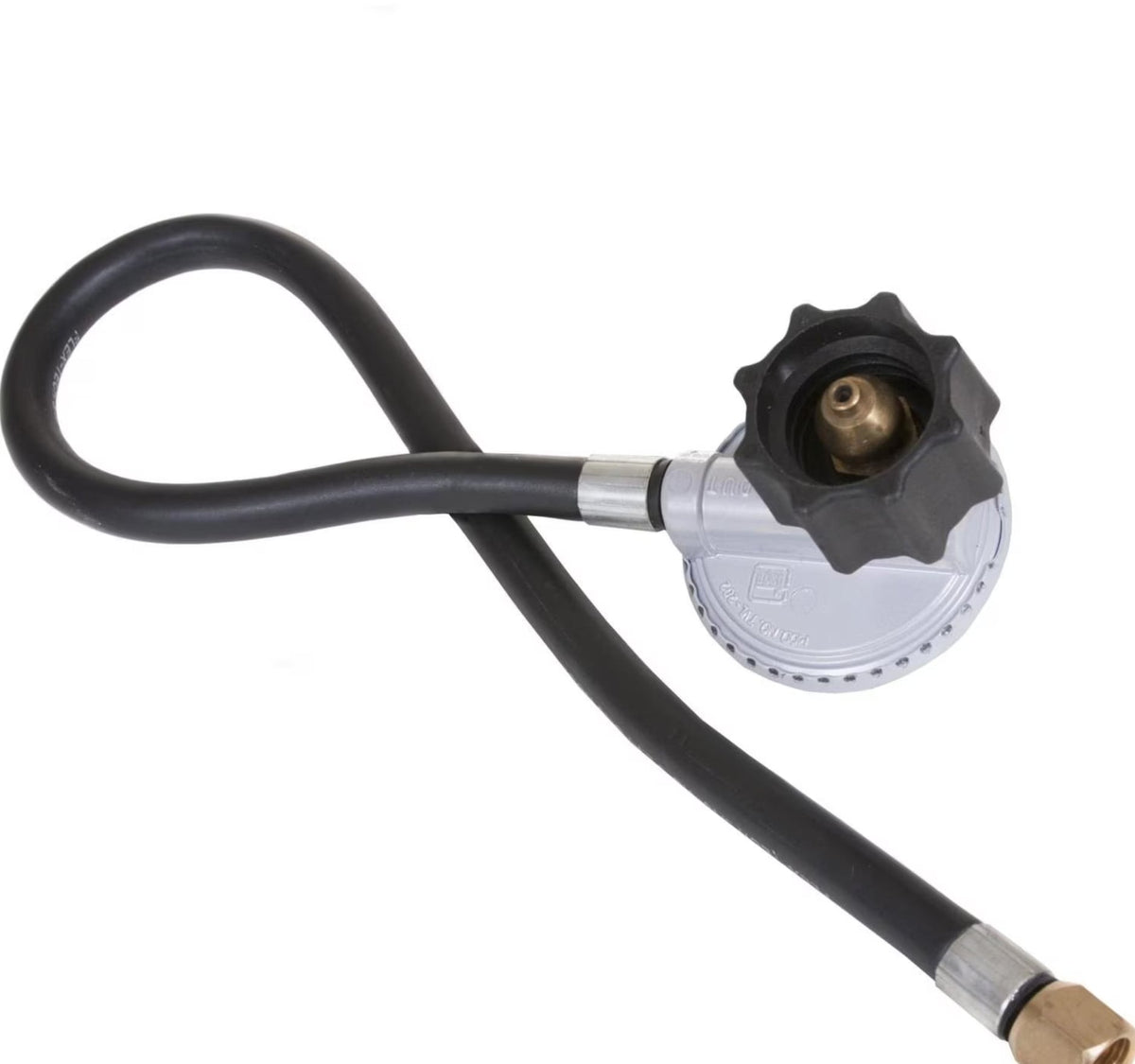

- LP hose and regulator assembly with connector (BLZ-LP-HOSE/REG)
The propane cylinder is not included.
Sold separately
- Blaze BCM 25-inch 3-burner built-in gas grill (BLZ-3BCM): a grill whose manual lists this part.
- Blaze BCM 32-inch 4-burner built-in gas grill (BLZ-4BCM): a grill whose manual lists this part.
- Blaze 10 ft natural gas / bulk propane hose with quick disconnect (BLZ-NG-HOSE): for a natural gas or plumbed-in propane supply instead of a cylinder.
- 20 lb propane cylinder with an overfill prevention device.
Installation planning
- Fitting (Blaze BCM manual): slide the grill halfway into its cart or built-in opening, then connect the 3/8" flare end of the hose to the grill's coupling with a 3/8" open-end wrench. Do not put pipe sealant on the flare connection.
- Connect the regulator to the cylinder by hand, without a wrench, then leak-test every joint.
- Leak test before each use and whenever the cylinder or any gas part is connected or replaced: brush a mix of one part liquid soap to one part water on all joints and open the cylinder valve one turn. Bubbles mean a leak. Never test with a flame. If a leak cannot be stopped, shut off the gas, remove the cylinder and call a service technician.
- Changing cylinders: turn the burner knobs off, close the cylinder valve, disconnect the regulator, connect the new cylinder and leak-test again.
- Route the hose away from hot surfaces and sharp edges and do not twist it. Inspect it before each use for cuts, wear, abrasion and leaks; Blaze says to replace it only with the Blaze-specified assembly (or a UL, ETL or CSA listed part with an internally threaded connector, per its maintenance checklist).
- Never connect the grill to an unregulated gas supply; Blaze says this voids the warranty. Do not use the natural gas regulator with a 20 lb cylinder. Regulator conversions must be done by a licensed gas professional.
- Cylinders: do not use a dented, expired or rusted cylinder; check the cylinder's seal before every use. Store and transport cylinders upright with the valve off, outdoors, out of children's reach, and never store a spare cylinder near the grill or more than one in a base cabinet.
Warranty
Blaze does not publish a separate warranty term for this replacement part. Ask us before ordering if you need the coverage confirmed.
