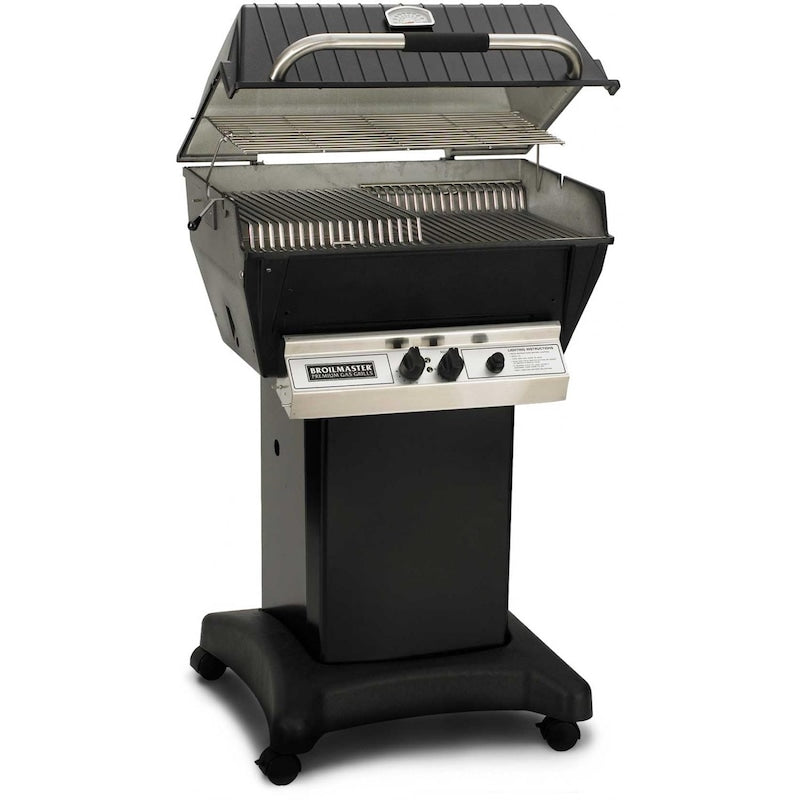

Broilmaster P3-XF Premium Gas Grill On Black Cart - P3XF+DCB1

Features

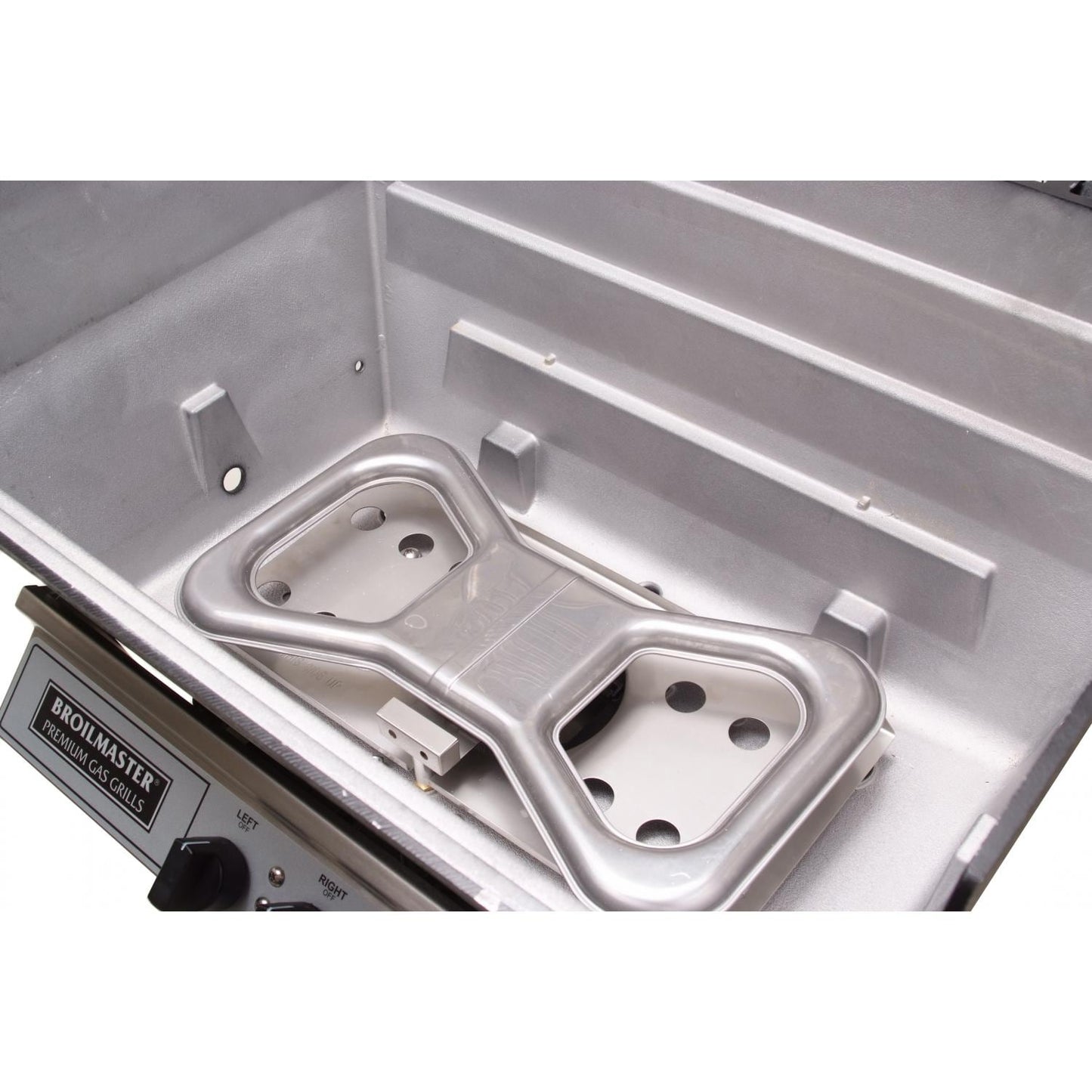

• Up to 40,000 BTU stainless Bow Tie burner: corner-to-corner heat for searing, with separate left and right controls for two-zone and indirect cooking.
• Flare Buster ceramic flavor enhancers (DPA116): protect the burner from food drippings to reduce flare-ups.

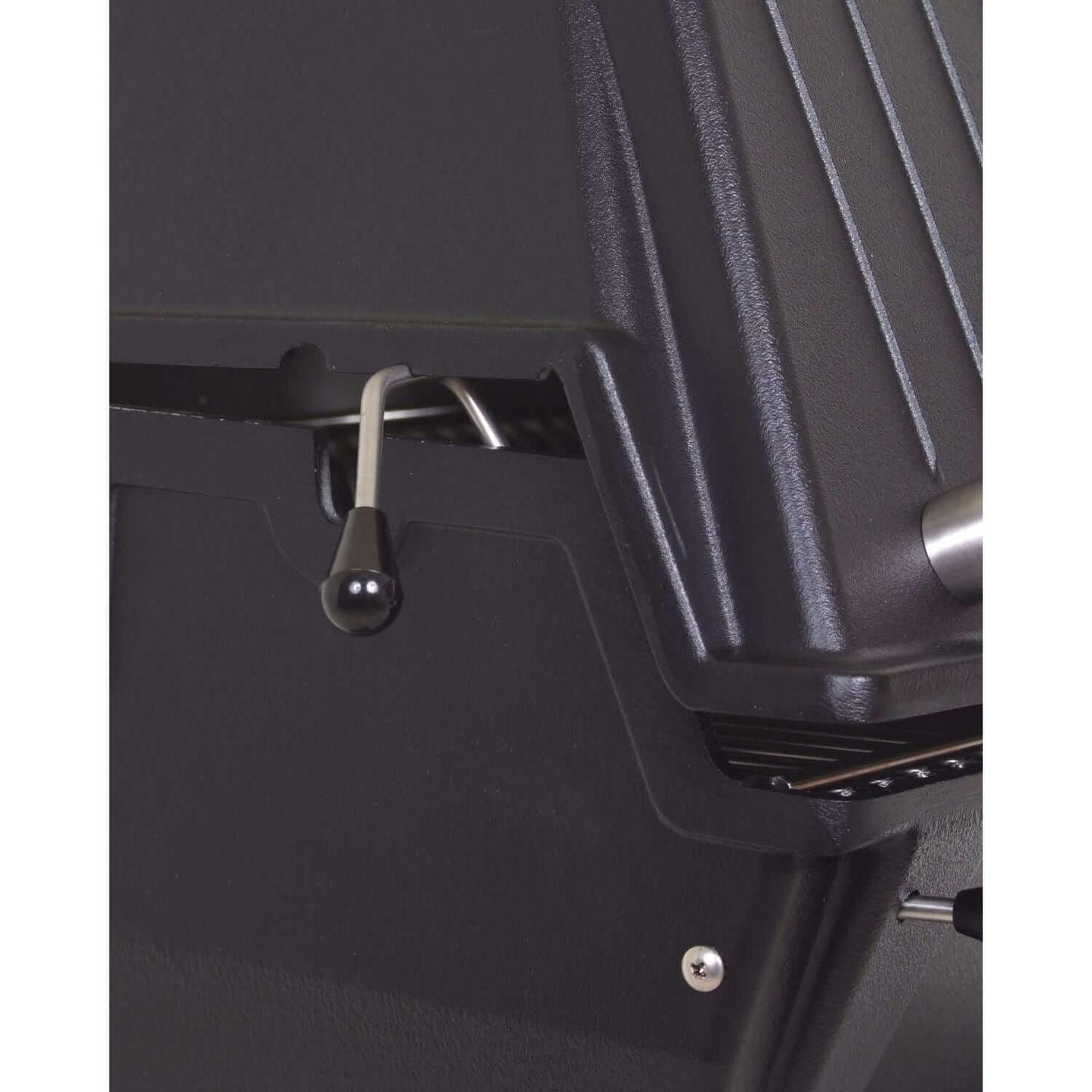

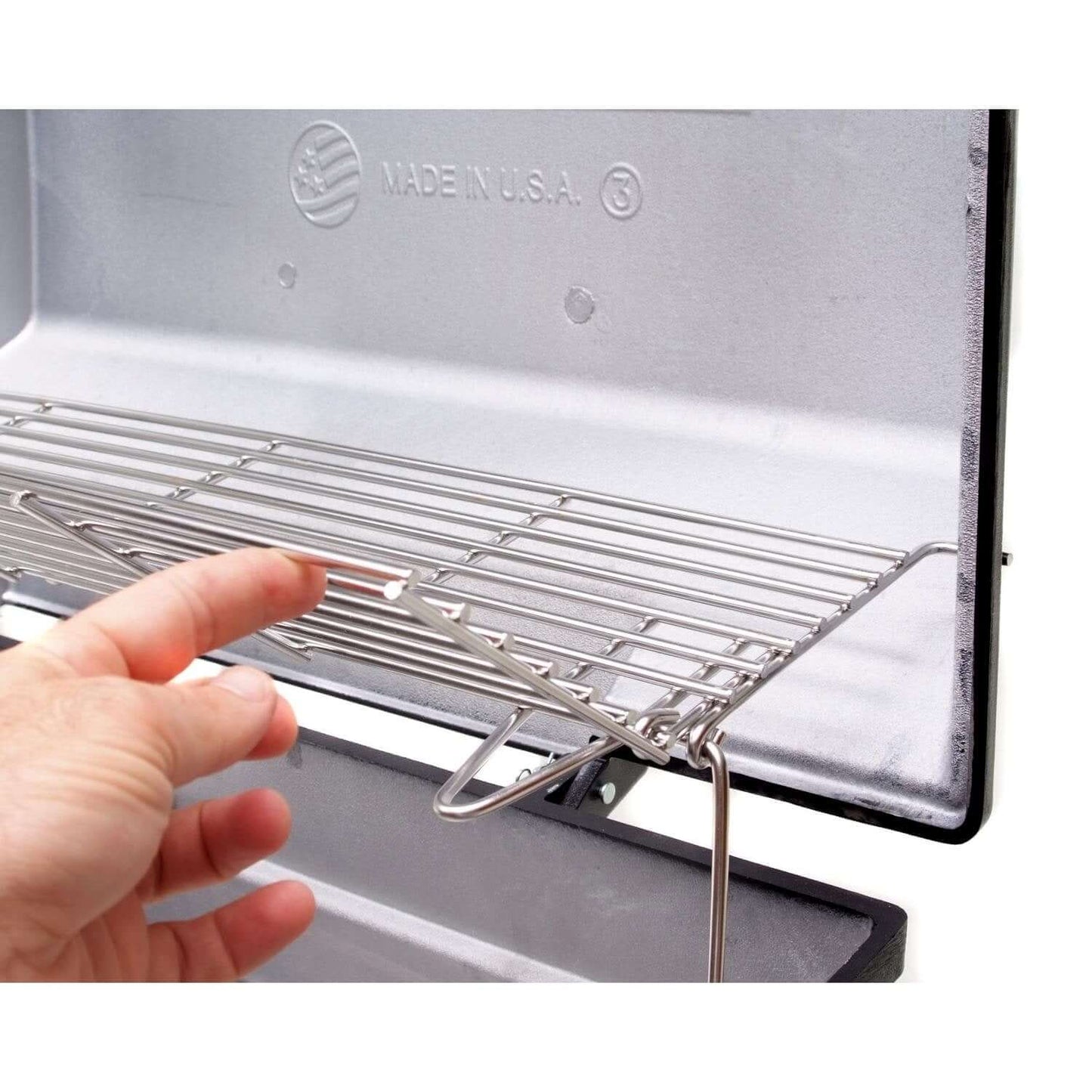

• Three-level stainless rod grids plus Retract-A-Rack: 695 sq. in. of total cooking area you can set for searing, baking or warming.
• Heavy-duty cast aluminum head: limited lifetime warranty against rust-through on the grill housing.

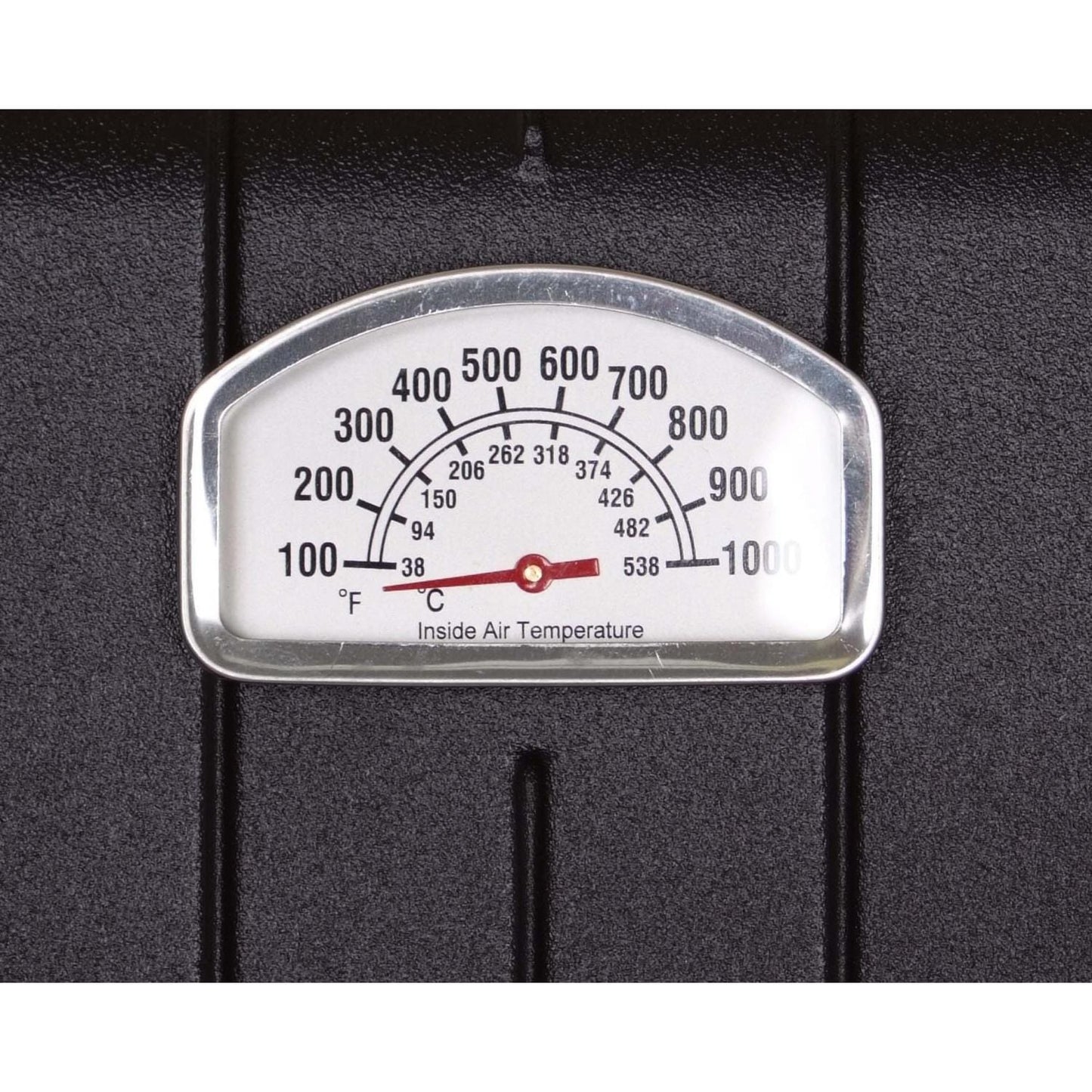

• Heat indicator in the lid: read the cooking temperature without lifting the lid.
• DCB1 black painted steel cart: four casters, the two front ones with brakes, a cylinder retainer for a 20-lb LP tank and a cart shield under the head.

Specifications

Installation planning

• Choose the spot. Place the grill at least 16" from combustible material at the sides and 18" at the back (fences, patio furniture and house walls count), and never under carports, covered porches, awnings or overhangs. Keep the area around the grill clear for ventilation. Outdoor use only: never in a building, garage or other enclosed area, a recreational vehicle or a boat, and never where gasoline or other flammable vapors or liquids are stored or used.
• Assembly order (B102345): casters into the base (the two with brakes at the front), cart walls assembled with screws and Keps nuts (remove the protective plastic first), walls to the base (fit all four screws before tightening), rear brace into the bracket cut-out, rubber guard over the cart cut-out and bushing in the right front panel, head bottom casting bolted on (four 1/4-20 x 3/4" bolts with flat washers), heat shield resting on the side panel cut-outs, then the grease cup into the shield cut-out and the tank retainer (1-1/4" screw, lock washer and wing nut). Wrenches: 3/8" and 7/16". Parts can have sharp edges, so wear leather work gloves.
• Fixed installation (optional): Broilmaster's earlier carts and posts instructions (B101586) show the cart base fastened to wood or concrete with three screws (not supplied) from a drilling template, with a 1-1/2" hole under the cart for a gas line if needed.
• Propane: secure the cylinder in the retainer before attaching the regulator, hand-tighten the regulator handwheel to the cylinder valve (no wrench), and keep the hose clear of the grill and the cart parts. Leak-test with soapy water every time you connect a cylinder, never with a flame. Store cylinders upright, out of direct sun and away from heat, never in a building or garage, with a valve plug fitted when disconnected; only the cylinder in use belongs near the grill.
• Natural gas: the grill has no pressure regulator and runs at 7" water column manifold pressure, so the supply must be regulated, run by a gas supplier or licensed contractor, with a shut-off valve close to the grill. Never use propane in a natural gas grill or natural gas in a propane grill. Pressure testing the supply: disconnect the grill and its shut-off valve for tests above 1/2 PSIG; close the shut-off valve to isolate the grill for tests at or below 1/2 PSIG. Leak-test every connection with soapy water, never a flame.
• First use: run on HI for 10 minutes with the lid open, then 10 minutes with the lid closed, to burn off manufacturing oils. To light: open the lid, turn the knob to HI and hold the ignitor button until the burner lights (about 5 seconds); if it does not light, turn it off and wait 5 minutes before trying again. If the ignitor fails, the burner can be lit with a long wooden match through the lighter hole on either side of the grill. Preheat on HI for 5 minutes with the lid closed.

Care: After cooking, run on HI with the lid closed for about 10 minutes (never more than 30) to burn off residue, then let it cool and wipe with a damp cloth. Brush the grids, empty the grease cup regularly, keep the air holes in the bottom clear and clean the heat indicator probe once a season. Inspect and clean the burner venturi tubes at least twice a year, and more often when spiders are active. Clean the cart with hot water and mild detergent; avoid harsh or abrasive cleaners, which scratch the finish. Use only the supplied grease cup or a noncombustible container such as an aluminum or tin can. Inspect the mounting components at least twice a year and replace worn parts.

Warranty

Broilmaster limited warranty for Premium grills: limited lifetime against rust-through on the cast aluminum grill housing (paint excluded), the stainless steel cooking grids, and select stainless steel components, including the Bow Tie burner, carts and mountings, the warming rack and stainless built-in components; limited 5 years against rust-through on the Flare Buster ceramic flavor enhancers and painted electro-galvanized steel components; limited 2 years on the stainless steel heat shield; limited 1 year on valves, knobs, ignitors, labels, hoses, fittings, grease cups, drip buckets and other parts and accessories, and on the paint of the aluminum grill head.

The warranty covers the original purchaser only and does not transfer. The grill must be installed by a qualified technician and operated and maintained as the manual describes, and warranty repairs must be done by a qualified gas appliance technician. Damage from misuse or improper installation or storage is excluded, and using lighter fluid voids the warranty. Keep your receipt: warranty parts require proof of purchase, and the dealer needs your name, address, purchase date, serial number and a description of the problem. Full terms are in the owner's manual (B102521).

Manuals and documents

• Premium grill heads owner's manual, P3X / P3SX / P3XF / P4X / P4XF, B102521 (PDF)
• Broilmaster PCB1 / DCB1 cart instructions, B102345 (PDF)
• Broilmaster carts and posts instructions, earlier edition B101586 (PDF)
• Broilmaster cart options page
• Broilmaster 2024 brochure, BRM-00058 (PDF)
• Broilmaster Premium P3XF product page
