Bromic Platinum Electric Marine Low Clearance Ceiling Recess Kit - 2300W, 3400W or 4500W
Bromic Platinum Electric Marine Low Clearance Ceiling Recess Kit - 2300W, 3400W or 4500W
Couldn't load pickup availability
Order before noon Pacific Time for same-day shipping.*
Estimated delivery within the contiguous US: 2–3 business days after shipping.
*Monday–Friday, excluding holidays.
Shipping details
Orders placed before 12:00 p.m. Pacific Time Monday–Friday ship the same day, excluding holidays. Orders placed after the cutoff, on weekends, or on holidays ship the next business day.
Delivery within the contiguous US typically takes 2–3 business days after shipping. Saturdays, Sundays, and holidays do not count toward this estimate.
Orders with a subtotal over $199.99 before tax qualify for free base shipping to US destinations. Orders with a subtotal of $199.99 or less before tax have a $29.99 base shipping charge per order.
Additional shipping charges may apply to Alaska, Hawaii, and US territories. We will notify you of any additional charge on a case-by-case basis before shipping. See our shipping policy for details and delivery estimates for these destinations.
Description
The Bromic Platinum Electric Marine Low Clearance Ceiling Recess Kit flush-mounts a heater in a ceiling cavity as small as 7.1 in. It fits within standard joists, which makes recessed heat possible in a remodel, and it is UL certified according to Bromic.

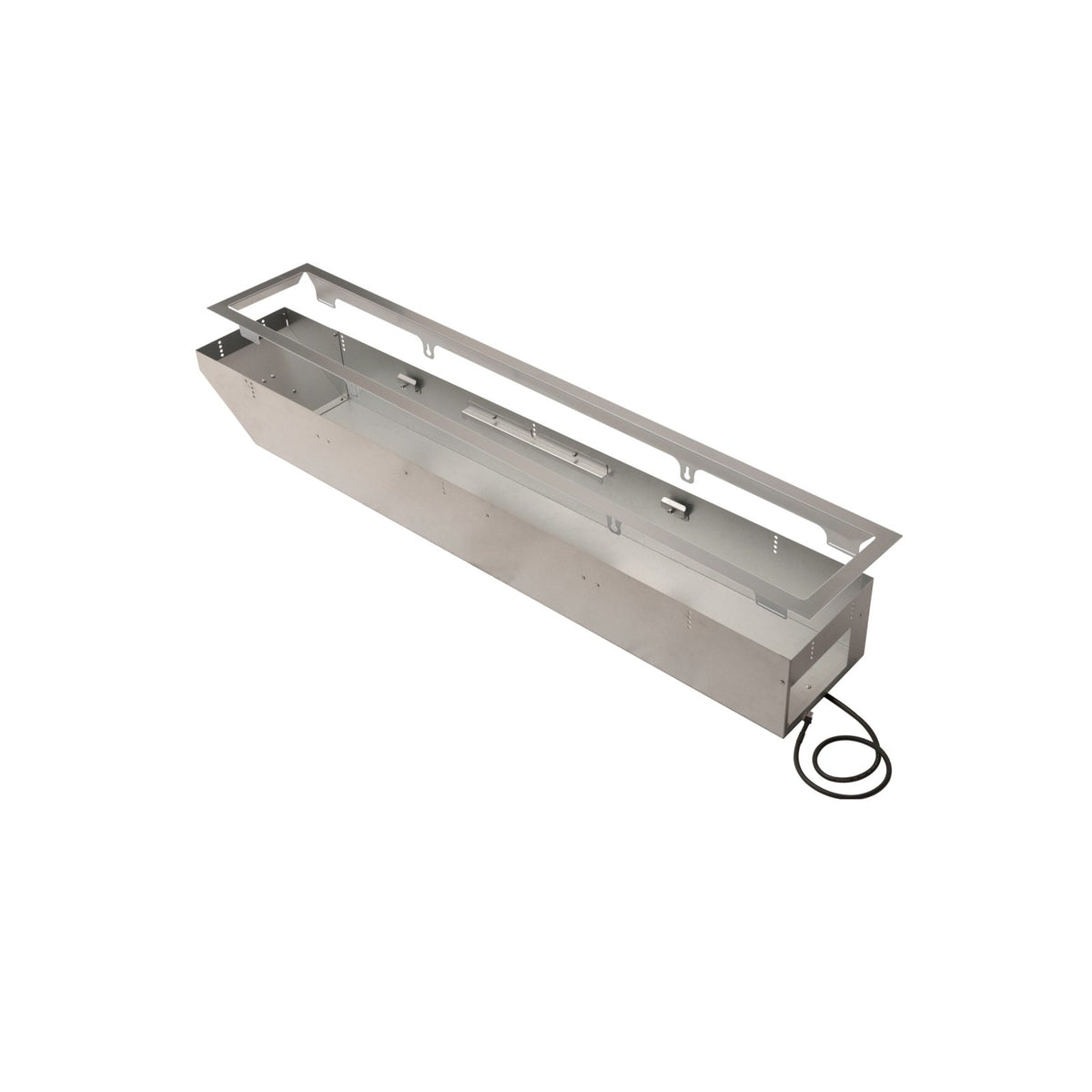

A built-in frame and cooling fan manage temperature in the cavity. The fan needs its own constant power supply, separate from the heater: 100-127V, 208V or 220-240V, under 1 A. Access to the cavity through the box is restricted, so plan the wiring and any controller location before fitting it.
Features
- Fits cavities as small as 7.1 in.
- Integrated cooling fan on a dedicated supply

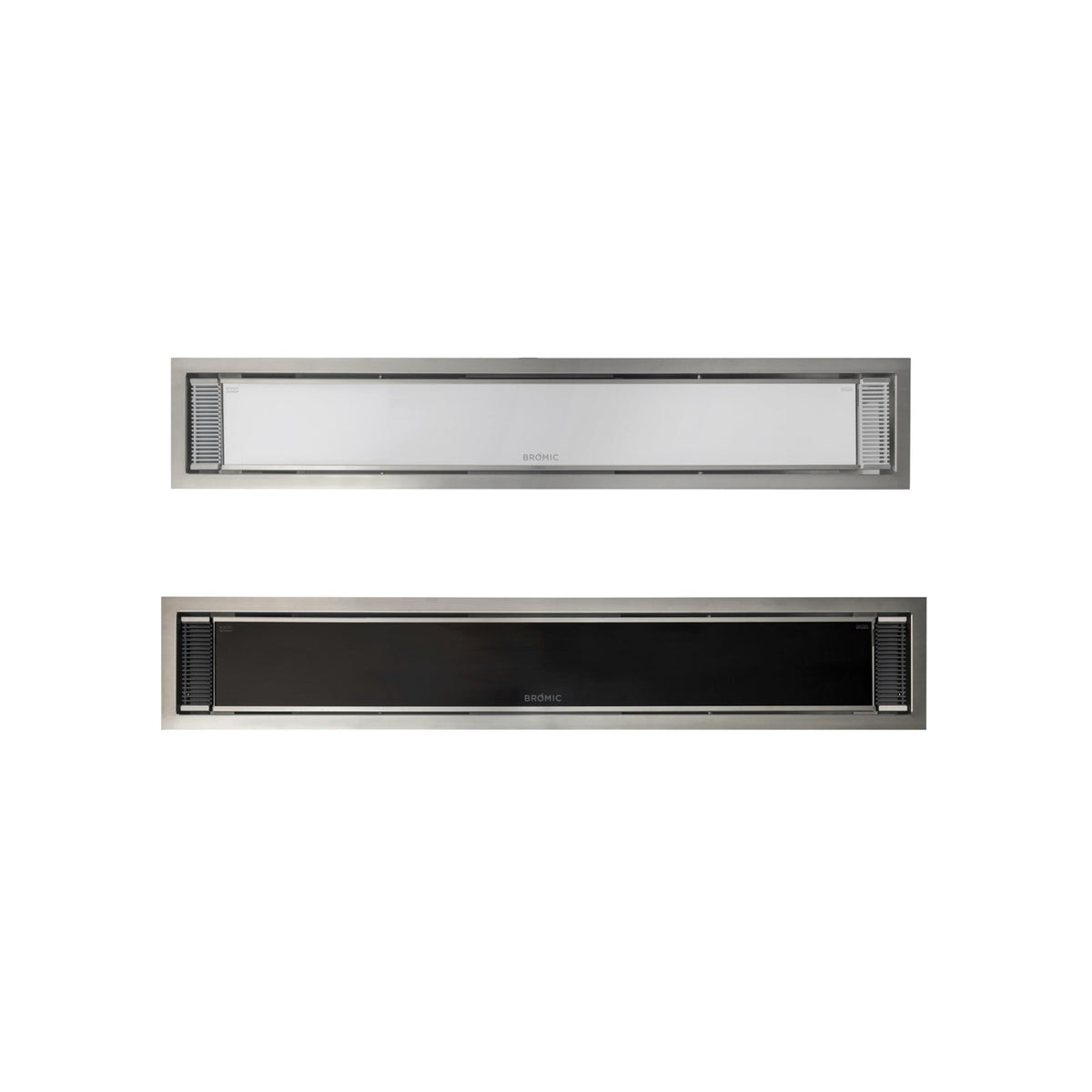

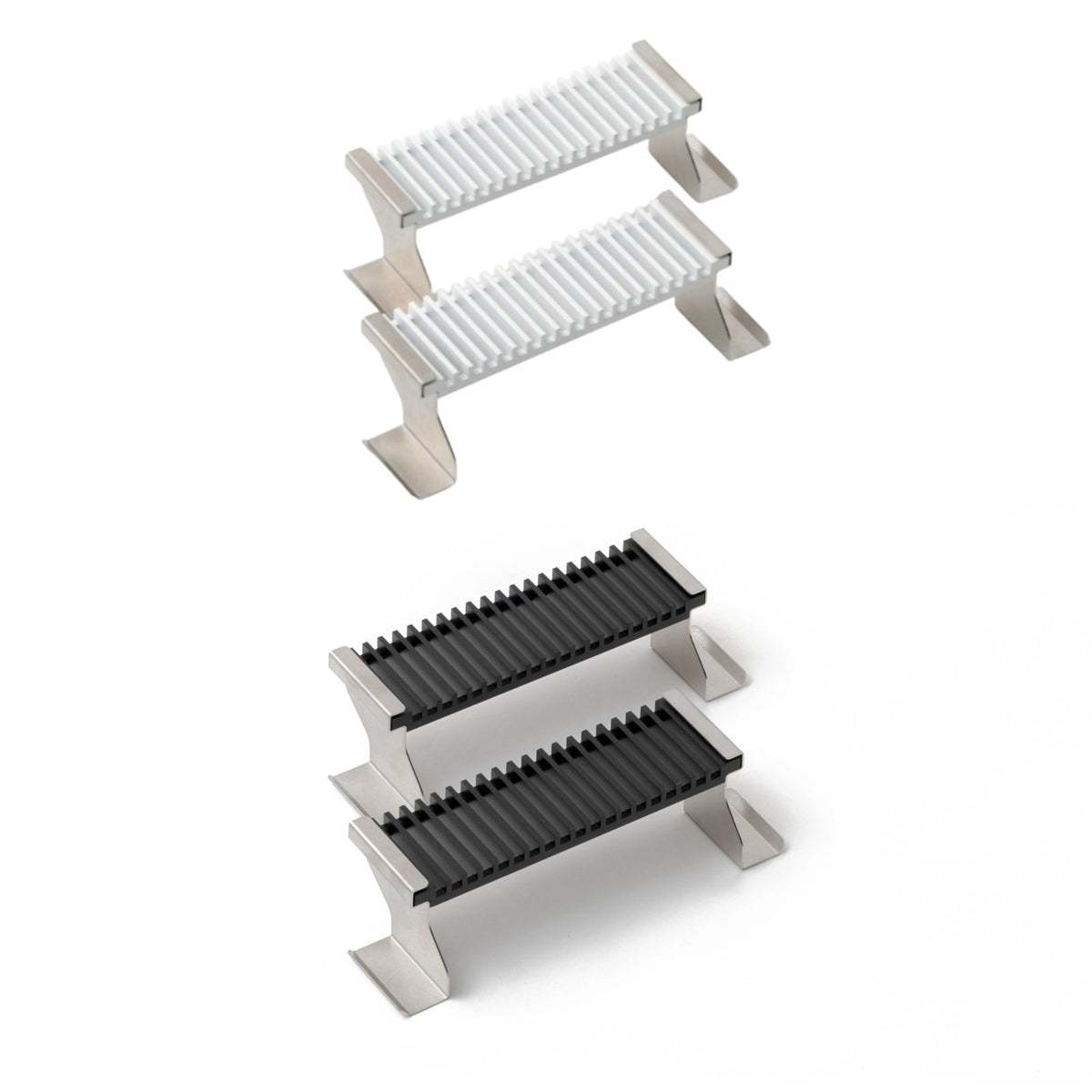

- Includes black and white vent covers, recess box, IP cover and terminal box
- New build or retrofit
Specifications
| Cut-outs | |
|---|---|
| 2300W | 39.2 x 9.4 in. |
| 3400W | 56.3 x 9.4 in. |
| 4500W | 61.0 x 12.5 in. |
| Installed mass with heater | |
| 2300W | 41 lb |
| 3400W | 53 lb |
| 4500W | 55.1 lb |
| Clearances | |
| Vertical space | 7.1 in. minimum |
| Terminal box end | 7.9 in. minimum |
| Cut-out to nearest wall | 19.7 in. minimum |
| Between heaters | 19.7 in. minimum |
| Heater surface to floor | 96 in. minimum |
| Details | |
| Fan supply | 100-127V, 208V or 220-240V, under 1 A |
| Finish | Brushed 316 stainless steel |
| Ceiling thickness | 0.39 to 1.2 in. |
| Part numbers | BH3623011, BH3623010-1, BH3623013-1 |
Installation planning
- Installer: a licensed person must install it, and two people are needed.
- Structure: do not cut or notch joists, beams or rafters. Use at least 6 fasteners along the long edge, and at least 10 on timber members.
- Insulation: never cover the kit with insulation or similar material.
- Marine: land and coastal use only, not on marine craft.
Warranty
Bromic's published warranty page does not list a term for this item. Call us for the current terms before you order.
