Features

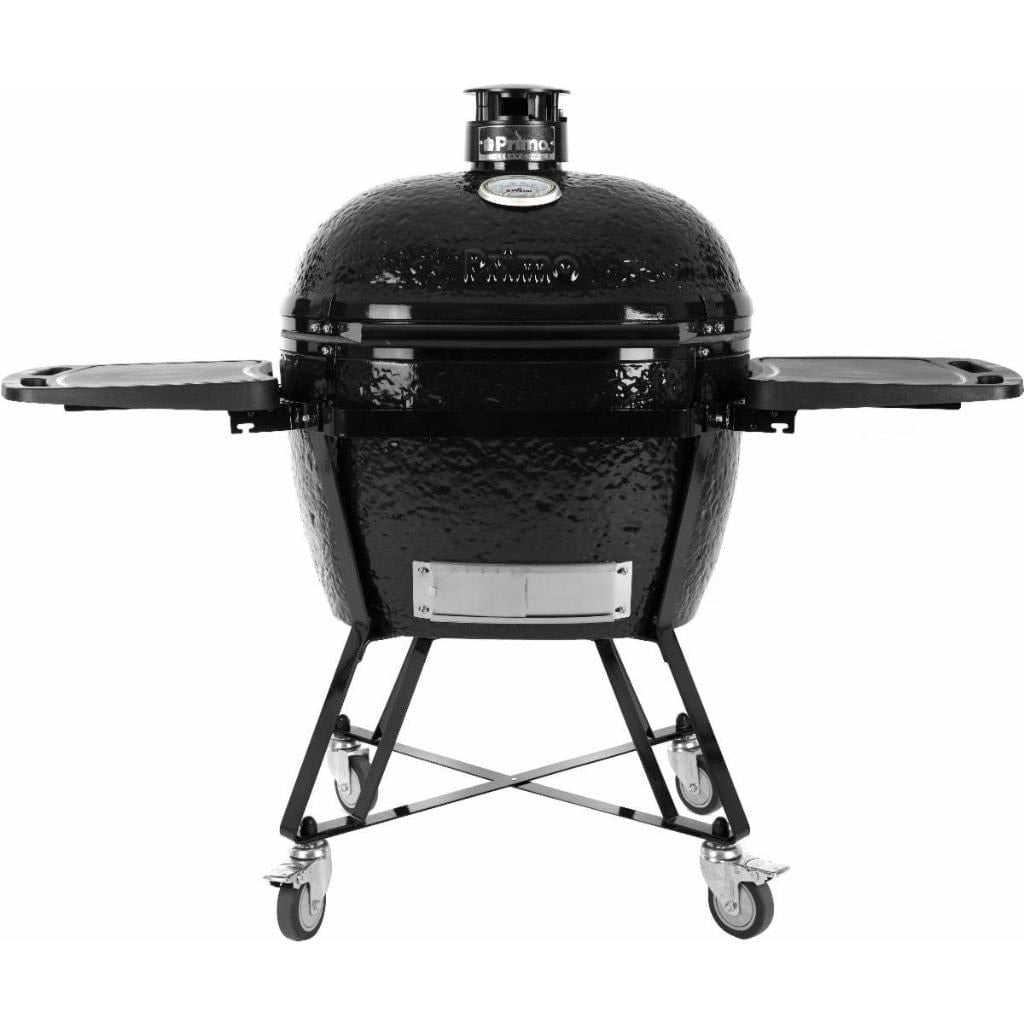

- Metal cradle on locking casters: Primo's sturdy metal cradle rolls the XL to where you cook, and the locking casters keep it in place while you grill.
- Two side tables: Primo calls them removable on the product page and fold-down on its All-In-One page, so you can fold them away for storage or transport.
- Made for the Oval XL 400: the XL cradle (model 7800) Primo ships in its All-In-One XL package, sold here as a stand-alone stand.
- Simple bolt-together frame: two base supports, two side supports, two stabilizers and a cross brace, joined with M6 studs, lock nuts and acorn nuts.
- Adjustable side tables: if a side table sags or sits uneven, Primo's fix is to loosen two acorn nuts, raise the side support and retighten.
Specifications
| Brand | Primo Ceramic Grills |
|---|---|
| Model | PG0178005 Cradle and Side Tables for XL (All-In-One XL cradle, model 7800) |
| Type | Rolling cradle stand with side tables for a ceramic kamado grill |
| Fits | Primo Oval XL 400 charcoal grill head (PGCXLH) |
| Construction | Metal cradle (Primo does not name the metal or finish) |
| Casters | Locking casters; Primo says to face the locking casters forward on the long side |
| Side tables | 2, removable / fold-down; material not published by Primo |
| Frame parts (Primo assembly sheet) | 1 cross brace, 2 side supports, 2 stabilizers, 2 base supports, 4 shelf brackets |
| Hardware (Primo assembly sheet) | M6 x 20 threaded studs, M6 lock nuts, 4 M6 x 16 flat Phillips head screws, 4 M6 acorn nuts, 8 self-tapping Phillips head screws for the XL side shelves |
| Tools needed | Adjustable wrench (or 10 mm and 11 mm wrenches); large Phillips screwdriver |
| Grill it serves (Primo XL spec sheet) | 250 lb; 28 in. wide at the lid, 22 in. at the base, 21.5 in. deep, 27.5 in. tall with the lid closed |
| Cradle size, weight and grill height in the cradle | Not published by Primo; ask us before you order |
| Warranty | See Warranty below |
What's included
- Metal cradle with locking casters (cross brace, 2 side supports, 2 stabilizers, 2 base supports)
- 2 side tables with 4 shelf brackets
- Assembly hardware (studs, lock nuts, flat head screws, acorn nuts, self-tapping side-table screws)
Contents are from Primo's product page (cradle with locking casters and removable side tables) and its oval All-In-One assembly sheet, which does not give hardware counts for every item. The grill, heat deflectors and a cover are not included.
Sold separately
- The grill: Primo Oval XL 400 PGCXLH ceramic kamado head, or the complete All-In-One XL PGCXLC (head plus this cradle)
- Indirect cooking: heat deflector rack PG00333 with ceramic heat deflector plates PG00324
- Two-zone cooking: cast iron firebox divider PG00334
- Fuel: Primo natural lump charcoal PG00608
Installation planning
- Before you start: work on a smooth, level surface and check every part against Primo's parts list.
- Assembly (Primo, XL 7800): (1) slide base support A through base support B and turn A upright; (2) line up the center holes, fit two M6 x 20 studs from the top and two lock nuts from below, finger tight only; (3) fit four M6 x 16 screws through the base-support uprights, threads out, and set the side supports over them; (4) fit a stabilizer on each side with two acorn nuts, finger tight only; (5) fit two M6 x 20 studs in each base support, threads down, attach the cross brace from below with lock nuts, then tighten every fastener; (6) fix the side shelves with the eight self-tapping screws.
- Caster position: Primo says the locking casters should face forward on the long side.
- Side tables: if one sags or sits unlevel, loosen the two acorn nuts, pull the side support up and retighten them firmly.
- Setting the grill in: Primo's oval unpacking instructions (PG1000596) call for two adults, one at each end, with one hand under and one behind the grill. Lock the cradle's casters before lifting, never lift by the hinge assembly, and use the opened ash door as a lifting point only with heavy gloves. Then check both grill bands with a 5 mm hex key (do not overtighten).
- Placement: Primo's XL spec sheet asks for 12 in. of space behind the grill so the lid can open fully, and at least 2 in. around the outside of the grill.
Care: Primo's warranty asks owners to tighten bolts regularly; check the cradle nuts and side-table screws from time to time. Weather, moisture, salt and chemicals can mark metal parts, so a cover helps when the grill is not in use.
Warranty
Primo Ceramic Grills' warranty page does not name its cradles. Its general terms give a limited 5-year rust-through warranty on metal parts other than cast iron and a limited 1-year rust-through warranty on cast iron parts and on "all other parts and accessories" unless stated otherwise, alongside the limited lifetime warranty on ceramic parts. Ask us to confirm which term applies to this cradle before you order.
Primo's conditions: coverage is for the original purchaser; the product must be installed according to Primo's instructions; keep a bill of sale or payment record. Weather, moisture, salt, scratches and chemicals can affect metal parts, and rust, fading, surface blemishes and oxidation are not covered unless they cause a part to fail. Replacement parts ship at the purchaser's expense. Not covered: damage from use, misuse, improper installation or storage, unauthorized service or parts, lack of maintenance (including not tightening bolts regularly), removal and reinstallation, service calls, labor, travel, diagnostic and freight charges. Claims go through your dealer with the model number and proof of purchase, or through Primo's online warranty claim form; international claims are not accepted. Full terms are on Primo's warranty and parts page.
Manuals and documents
- Primo Cradle and Side Tables for X-Large product page
- Primo oval All-In-One cradle assembly instructions, 7400/7500/7800 (PDF)
- Primo oval grill unpacking instructions PG1000596 (PDF)
- Primo Oval XL 400 spec sheet (PDF)
- Primo All-In-One series
- Primo warranty and parts
