Features
- Original Primo ceramic part: the Large Oval Ceramic Refractory Plate that Primo sells for the inside of its oval grills.
- Sits in the firebox base: Primo's assembly steps place the ceramic bottom plate in the bottom of the firebox; the cast iron charcoal grate goes at the mid-base.
- Stays put when you clean: Primo's manual says not to remove the firebox or the ceramic plate when you remove ash.
- Not a heat deflector: separate from Primo's Heat Deflector Plates, which sit on the Heat Deflector Racks, so order the part you are replacing.
- Lifetime ceramic coverage: as a ceramic part it falls under Primo's limited lifetime warranty on ceramic parts (see Warranty).
Specifications
| Brand | Primo Ceramic Grills |
|---|---|
| Model | PG0177504, Primo Oval Ceramic Refractory Plate, Large |
| Type | Replacement ceramic bottom plate for the firebox |
| Material | Ceramic |
| Location | Bottom of the one-piece Oval ceramic firebox (owner's manual assembly) |
| Fits | Primo Oval Large 300 charcoal grill: head-only PGCLGH and the All-In-One PGCLGC |
| Other sizes (Primo) | Junior, X-Large and XX-Large |
| Grill cooking area (Large) | 300 sq. in. main grid, 15 x 22 in. (Primo Large spec sheet) |
| Dimensions and weight | Not published by Primo; ask us |
| Lead time | Primo notes this ceramic item may have a longer-than-normal lead time |
| Warranty | Limited lifetime on ceramic parts; see Warranty below |
What's included
- Primo Oval Ceramic Refractory Plate, Large, one piece (PG0177504)
Primo does not publish a carton list for this part. Ask us to confirm the contents before you order.
Sold separately
- Grills: Oval Large 300 PGCLGH and All-In-One Oval Large 300 PGCLGC
- Firebox parts: cast iron charcoal grate PG0177507, replacement gasket PG0177815 (XL 400 and LG 300)
- Two-zone cooking: cast iron firebox divider PG00344
- Indirect setup: Heat Deflector Plates PG00326 with the Heat Deflector Racks PG00316

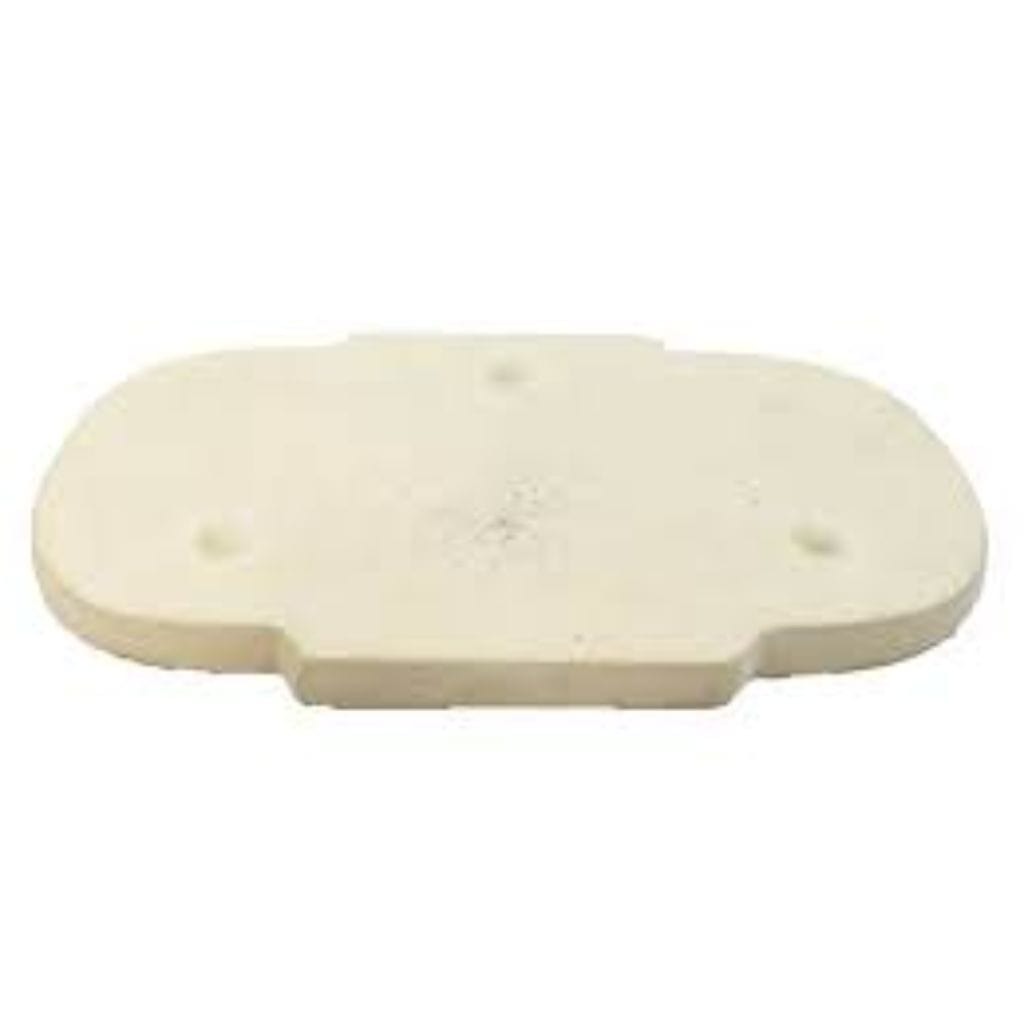

- Other size: XL ceramic refractory plate PG0177812
- Fuel and lighting: Primo natural lump charcoal PG00608, Quick Lights PG00609 or the electric charcoal starter PGEFIRE
- Ash cleaning: Primo ash tool PG00776
Installation planning
- Fit: this plate is the Large size; for other Primo grills choose the plate in your grill's size. Primo's warranty does not cover unauthorized parts.
- Placement: Primo's owner's manual has you place the ceramic bottom plate into the bottom of the firebox, then place the bottom (charcoal) grate at the mid-base of the firebox with the divider slots facing up; those slots hold the optional firebox divider. The Oval firebox is made as one piece.
- Handling: Primo's manual warns that ceramic will break if dropped, so set the plate in by hand rather than letting it fall into the firebox.
- Ash removal: Primo's manual says not to remove the firebox or the ceramic plate when removing ash. Its Quick Start Guide has you stir the used charcoal with the ash tool so the ash falls through the fire grate, then add about 30% new charcoal before relighting.
- Crazing: Primo's FAQ says tiny cracks (crazing) in the ceramic are normal and do not affect durability or performance; if chunks of ceramic break off, contact Primo.
- Fuel and lighting: use only natural lump charcoal, lit with a fire starter cube or two, a chimney or an electric starter with the dome open. Never use lighter fluid or any other combustible liquid; Primo says the ceramic absorbs it.
- Placement of the grill: Primo's Large spec sheet asks for 12 in. of space behind the grill so it can open properly, and at least 2 in. around the outside of the grill.
Warranty
Primo Ceramic Grills gives the original purchaser of the grill a limited lifetime warranty on all ceramic parts, a limited 5-year rust-through warranty on metal parts other than cast iron, a limited 1-year rust-through warranty on cast iron parts and on all other parts and accessories unless stated otherwise, and a limited 30-day warranty on felt gaskets and thermometers. The refractory plate is a ceramic part, so Primo's limited lifetime warranty on ceramic parts applies. Primo's owner's manual also excludes cracks or chips in the exterior glazing that occur after delivery to an authorized Primo dealer or distributor.
Primo's conditions: coverage is for the original purchaser; the product must be installed according to Primo's instructions; keep a bill of sale or payment record. Replacement parts ship at the purchaser's expense, and the existing part must be disposed of once the replacement arrives. Not covered: rust, fading, surface blemishes and oxidation unless they cause the part to fail; damage from use, misuse, improper installation or storage; unauthorized service or parts; lack of maintenance (including not removing ash from cast iron grates, not cleaning cooking grates and cast iron cooking surfaces after each use, and not checking and tightening bolts several times a season); removal and reinstallation, service calls, labor, travel, diagnostic and freight charges. Claims go through your dealer with the model number, serial number and proof of purchase, or through Primo's online warranty claim form; international claims are not accepted. Full terms are on Primo's warranty and parts page.
Manuals and documents
- Primo Oval Ceramic Refractory Plate on the Primo shop (sizes, lead time)
- Primo Large 300 product page
- Primo Large charcoal grill specification sheet (PDF)
- Primo Grills and Smokers Owner's Manual: assembly p. 7, FAQ p. 25 (PDF)
- Primo Quick Start Guide (PDF)
- Primo warranty and parts
Legal disclaimers and warnings
Product packaging, owners' manuals, installation instructions, and/or operating instructions may include more information than what is shown on our website. The content on our site is intended to be used for reference purposes only. Please fully read all included manuals and documentation before installing or using this product.
