Features

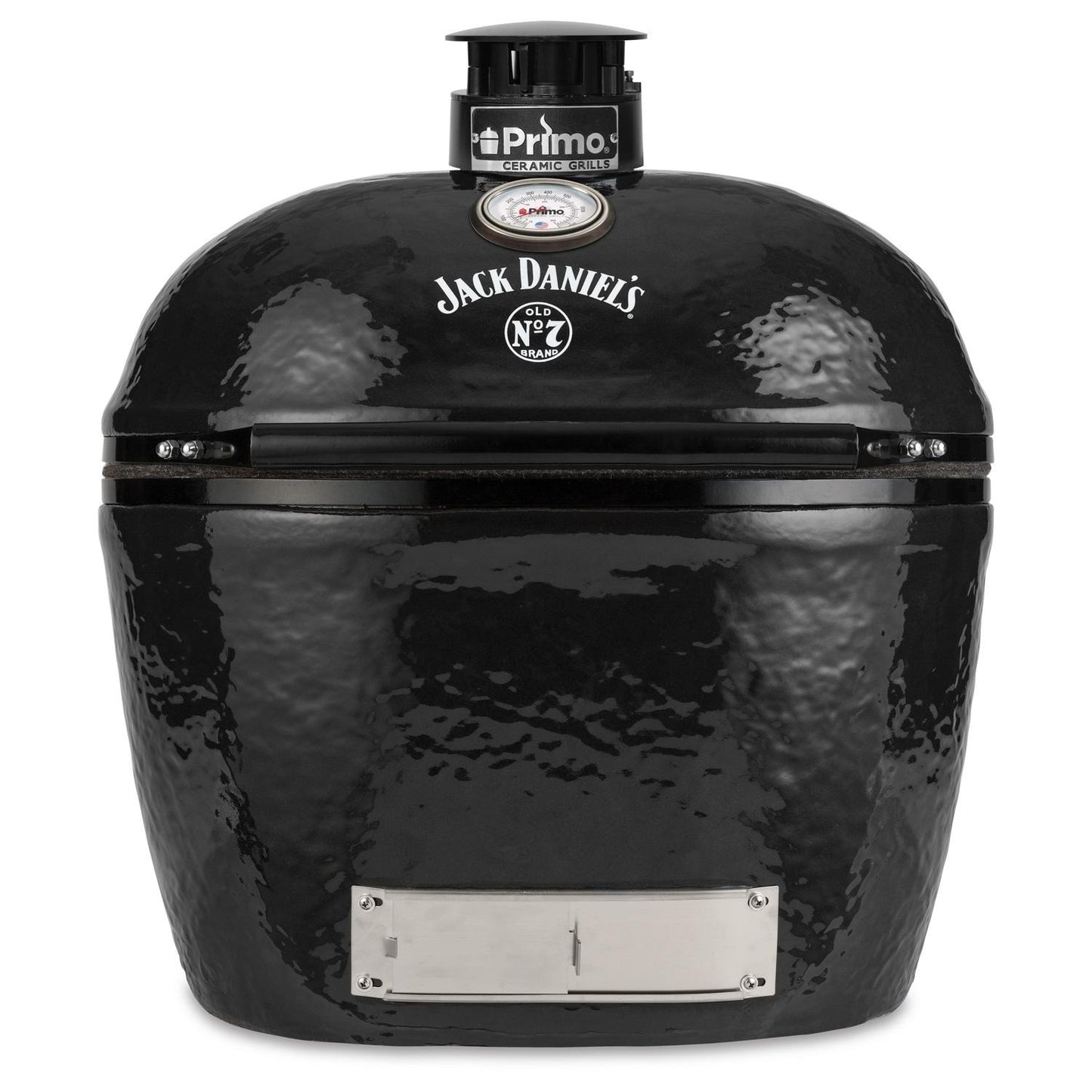

- Jack Daniel's Edition: Primo's exclusive whiskey-heritage version of its XL 400, with the same cooking specifications as the standard XL.
- Patented oval shape: two cooking zones in one grill, so you can sear over the fire and roast or smoke beside it.
- 400 sq. in. main cooking area, 680 sq. in. with racks: Primo rates it for 8 whole chickens, 2 whole turkeys, 12 steaks, 20 burgers, 10 racks of ribs or 12 ears of corn.
- 151 to 850°F and up: premium-grade ceramics hold heat for low-and-slow smoking at about 225°F as well as high-heat searing.
- 5-position damper top with a hood, and a 5-position draft door: fine temperature control, and the hood helps keep rain out of the top vent.
- Easy-lift hinge: Primo says it cuts the force needed to open the heavy ceramic lid by 70%.

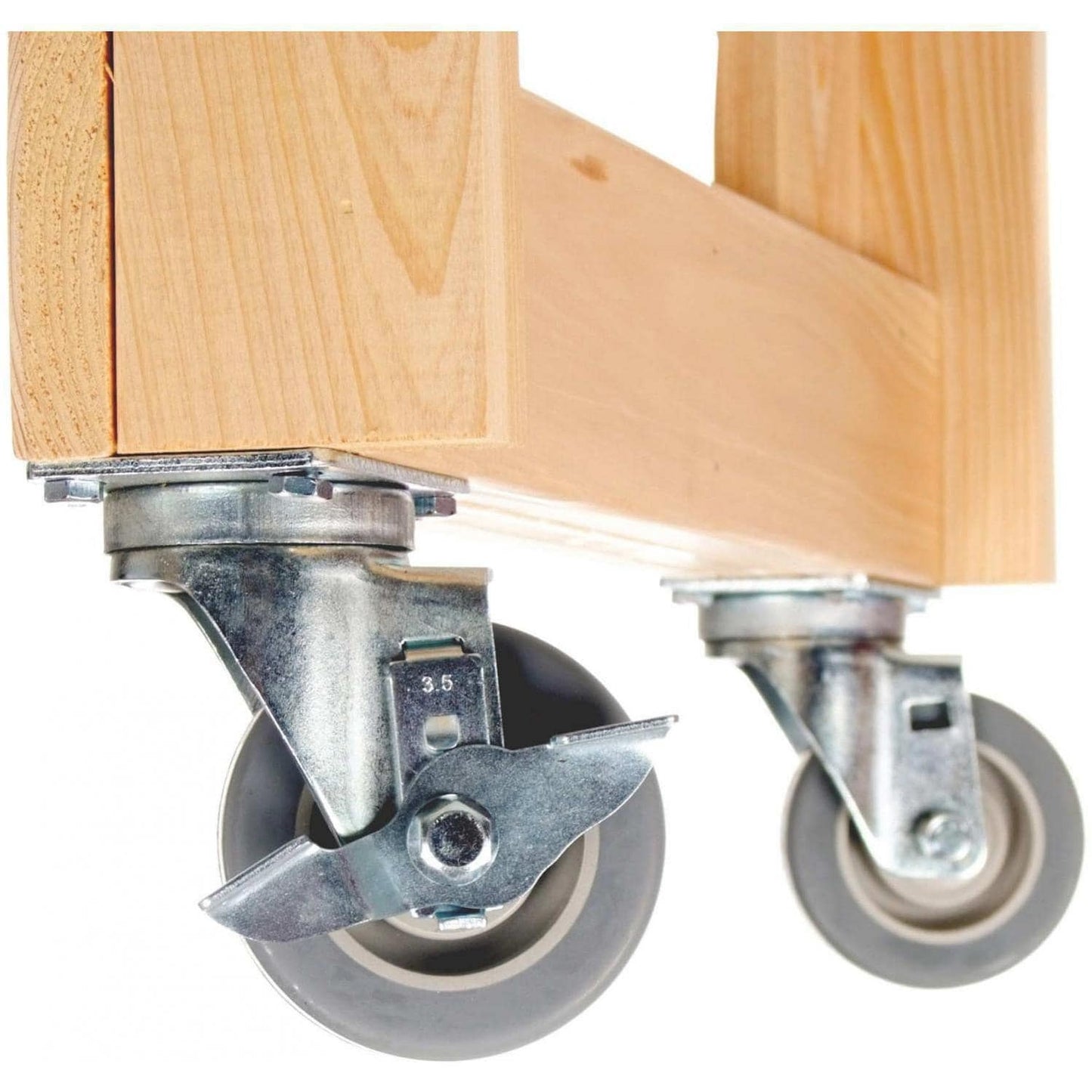

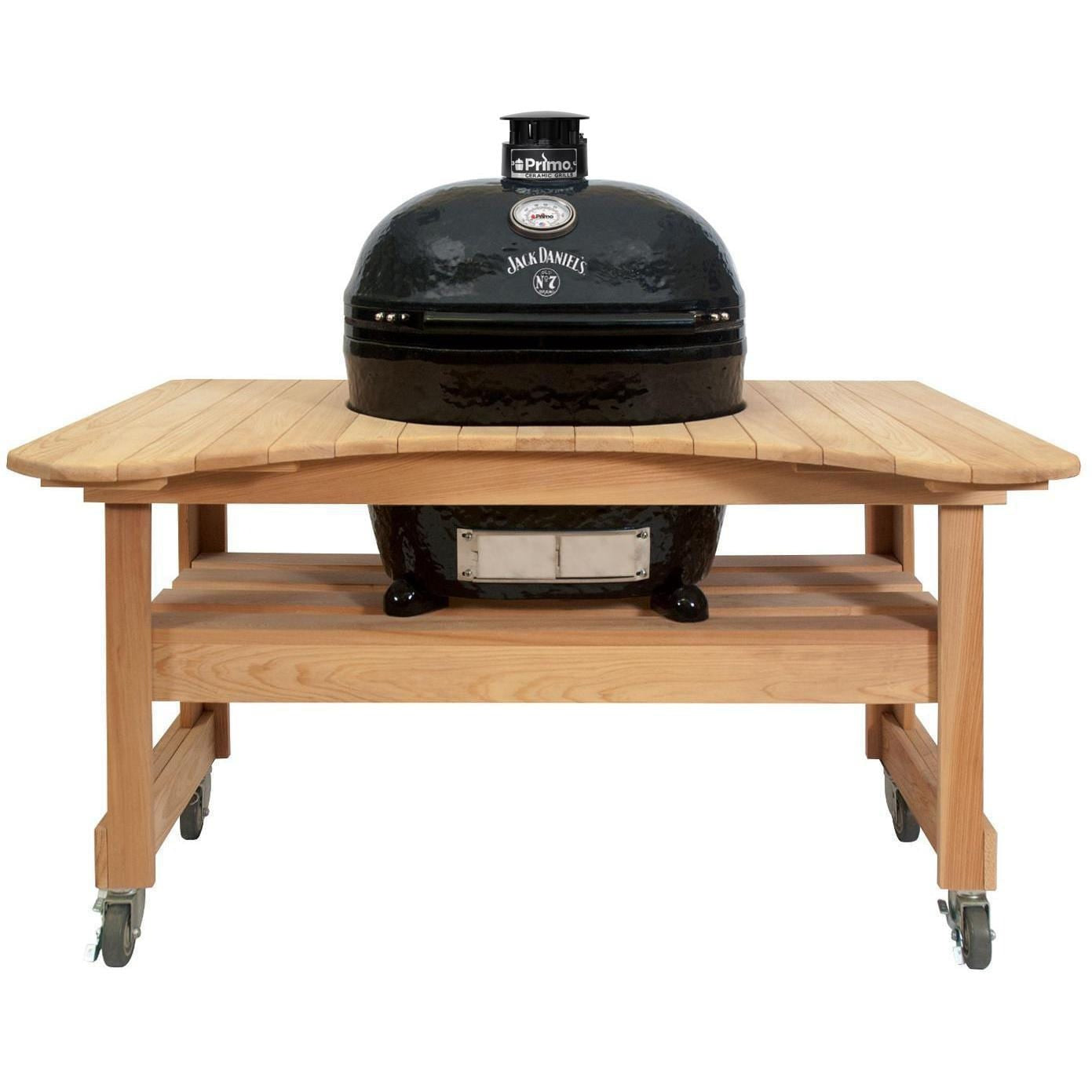

- Cypress table on locking casters: an unfinished cypress grill table you can roll into place and lock, with ceramic shoes for airflow under the grill.
- Made in the USA: built by Primo in Poplar Bluff, Missouri.
Specifications
| Brand | Primo Ceramic Grills |
|---|---|
| Model | PGCXLHJ Jack Daniel's Edition Oval XL 400 (X-Large) charcoal grill + PG00600 Curved Cypress Table for Oval XL |
| Type | Oval ceramic kamado grill in a wood grill table |
| Fuel | 100% natural lump charcoal |
| Main cooking area | 400 sq. in. (2,580 sq. cm) |
| Optional rack system | 280 sq. in. (1,806 sq. cm); 680 sq. in. (4,386 sq. cm) total with racks |

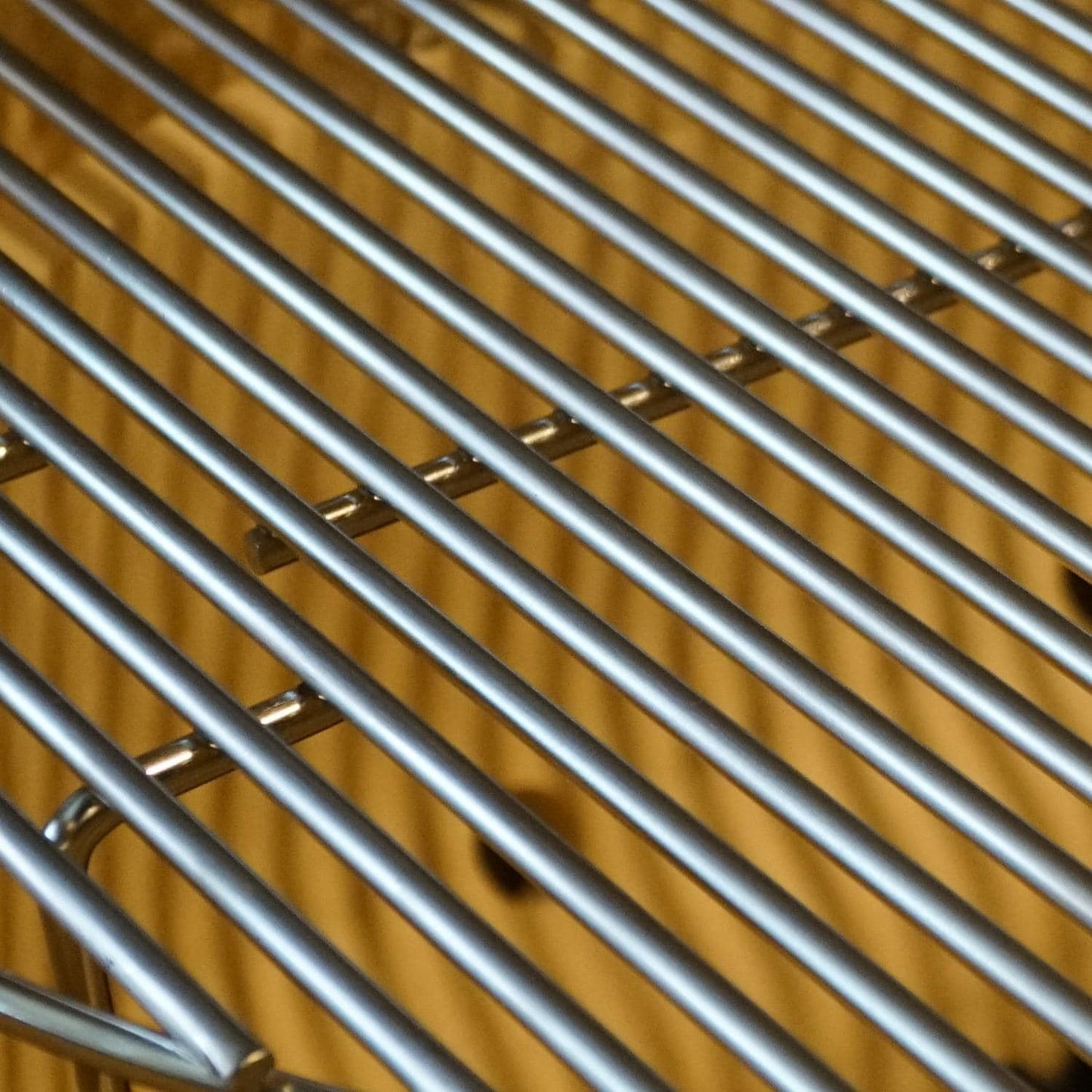

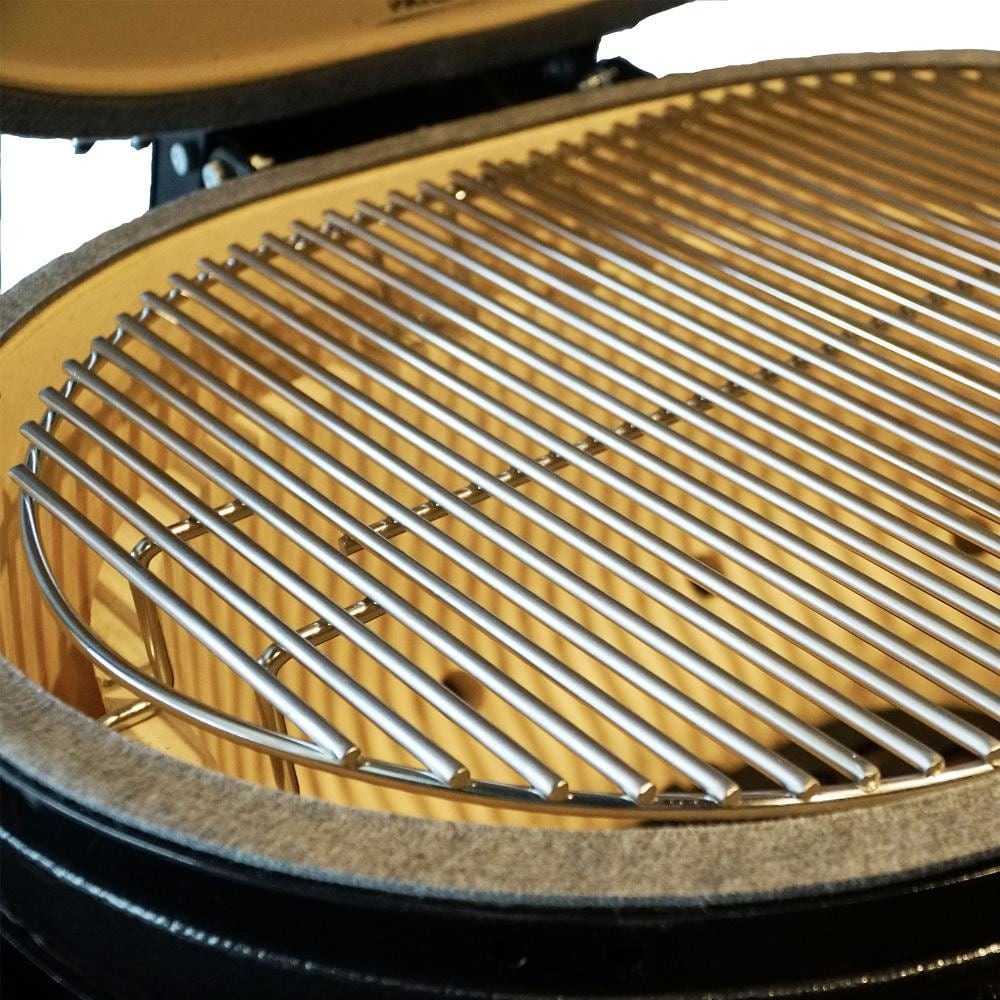

| Cooking grid | 18-1/2 x 25 in. (47 x 64 cm), reversible cooking grates |
| Temperature range | 151 to 850°F+ (66 to 454°C+) |
| Capacity (Primo) | 8 whole chickens, 2 whole turkeys, 12 steaks, 20 burgers, 10 racks of ribs or 12 ears of corn |
| Grill head width | 28 in. at the widest point (lid); 22 in. at the base |
| Grill head depth | 21-1/2 in. |
| Grill head height | 27-1/2 in. with the lid closed (lid 11 in., base 16-1/2 in.) |
| Grill head weight | 250 lb (113.4 kg) |
| Construction | Premium-grade ceramic dome and base, with bands and hinge |
| Air control | 5-position cast aluminum damper top with hood and daisy wheel; 5-position lower air control (draft door) |
| Hinge | Easy-lift hinge, about 70% less opening force (Primo) |
| Thermometer | Dome thermometer |
| Clearances | 12 in. behind the grill for the lid to open; at least 2 in. around the exterior |
| Table | Primo Curved Cypress Table PG00600: unfinished cypress, locking casters, ceramic shoes (Primo) |
| Table size and weight | Not published by Primo; ask us before you order |
| Made in | USA (Poplar Bluff, Missouri) |
| Warranty | Limited lifetime on ceramic parts; see Warranty below |
What's included
- Primo Oval XL 400 ceramic grill head Jack Daniel's Edition (PGCXLHJ): dome and base with bands and hinge, reversible cooking grates, top vent with daisy wheel, lower draft door, dome thermometer, ceramic fire box and fire grate
- Primo Curved Cypress Table for Oval XL (PG00600), with locking casters
- Ceramic shoes for the table (Primo includes them with its Cypress tables)
Primo does not publish a carton list for this pairing; the head parts above are the grill components named in Primo's Quick Start Guide. Ask us to confirm the grate material, whether a fire box divider is in the box, and the table's assembly before you order.
Sold separately
- Other homes for the head: Jack Daniel's Edition 2-piece island top PG00911 (needs the steel cart PG00368), steel cart with stainless side tables PG00370, Cypress countertop table PG00612 or cradle and side tables PG0178005
- Indirect cooking: heat deflector rack PG00333 with ceramic heat deflector plates PG00324
- Two-zone cooking: cast iron firebox divider PG00334
- More grill space: extended cooking rack PG00332 and stainless half rack PG0177805
- Cookware: half-moon cast iron searing grate PG00361, XL griddle PGXLG and rotisserie kit PGXLR
- Temperature: precision control upgrade kit PGCXL
- Fuel and lighting: Primo natural lump charcoal PG00608 and electric charcoal starter PGEFIRE
- Tools: grate lifter PG00777 and ash tool PG00776
Installation planning
- Placement: allow 12 in. behind the grill so the lid can open fully, and keep at least 2 in. of space around the exterior surface of the grill. Choose a smooth, level spot and lock the table's casters before you lift the grill in or start a cook.
- Unpacking and lifting: Primo's oval unpacking instructions (PG1000596) call for two adults, one at each end, with one hand under and one behind the grill. Never lift it by the hinge assembly; the opened ash door can be used as a lifting point only with heavy gloves. Lock the casters of the stand before setting the grill in it, and use a 5 mm hex key to check that both bands are tight before and after first use (do not overtighten).
- Airflow: set the grill on the ceramic shoes that come with the Cypress table, so air can move under the hot ceramic base.
- Built-in instead: if you later build the head into a counter, cut it to Primo's XL template for your hinge (new hinge or old hinge) and confirm the template against the grill on site before cutting; Primo says not to scale the drawings.
- Fuel and lighting: use only natural lump charcoal, a full fire box for searing or smoking and about half for two-zone cooking. Light it with fire starter cubes, a chimney starter or an electric starter with the dome open; after 5 to 10 minutes, when embers form, close the dome and open the draft door and top vent fully. Never use lighter fluid or other combustible liquids, because the ceramic absorbs them and food can taste of fuel.
- Temperature control: when you are within about 25°F of your target, close the top vent to one-third open, wait 1 to 2 minutes, then adjust it in 1/4 in. steps (each step can move the temperature up to about 25°F). For grilling keep the draft door fully open; for roasting set it about one-third open. For smoking at about 225°F, start a very small fire, set the draft door to about a 1 in. opening at 200°F and use only the daisy wheel holes on the top vent. It is easy to raise the temperature and hard to bring it down.

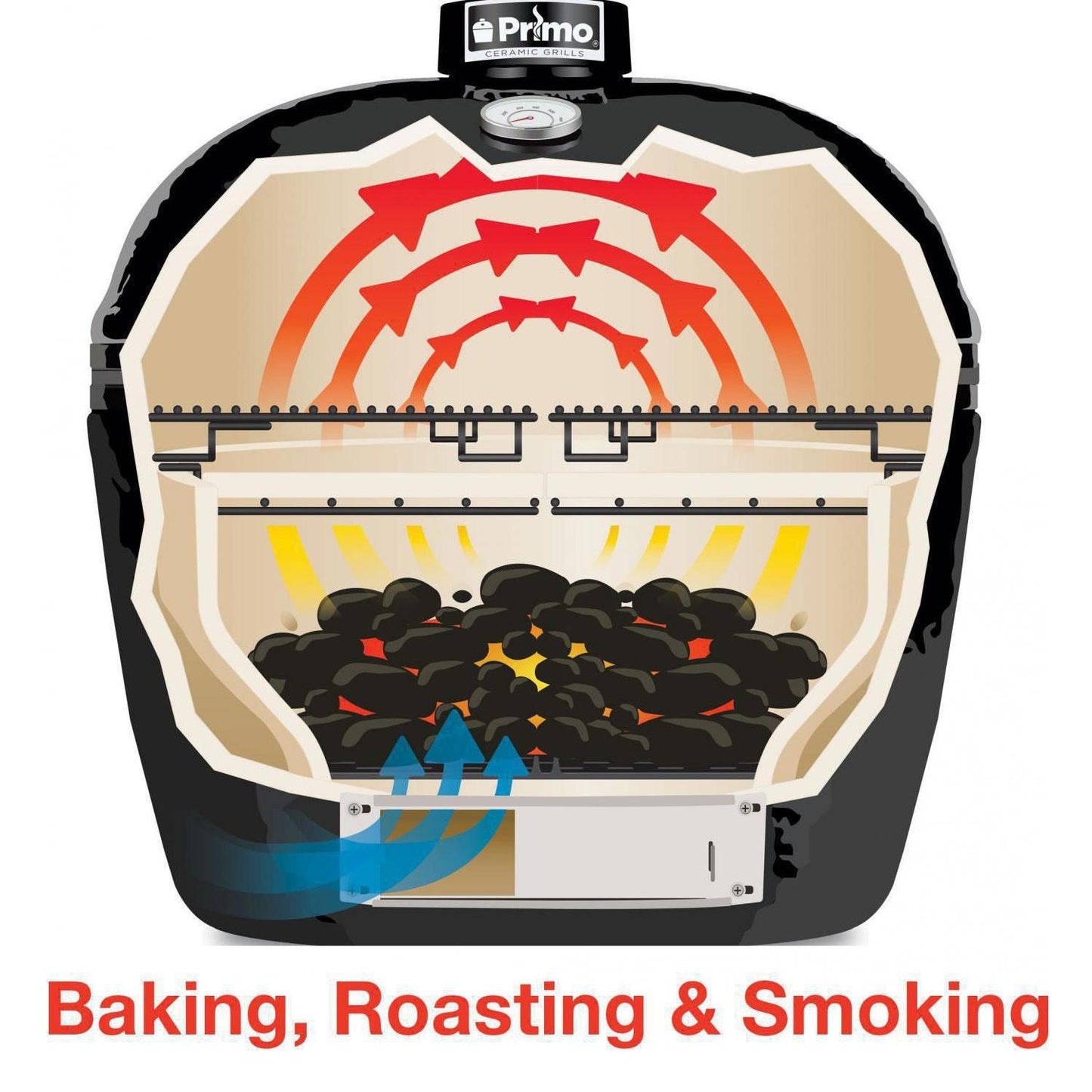

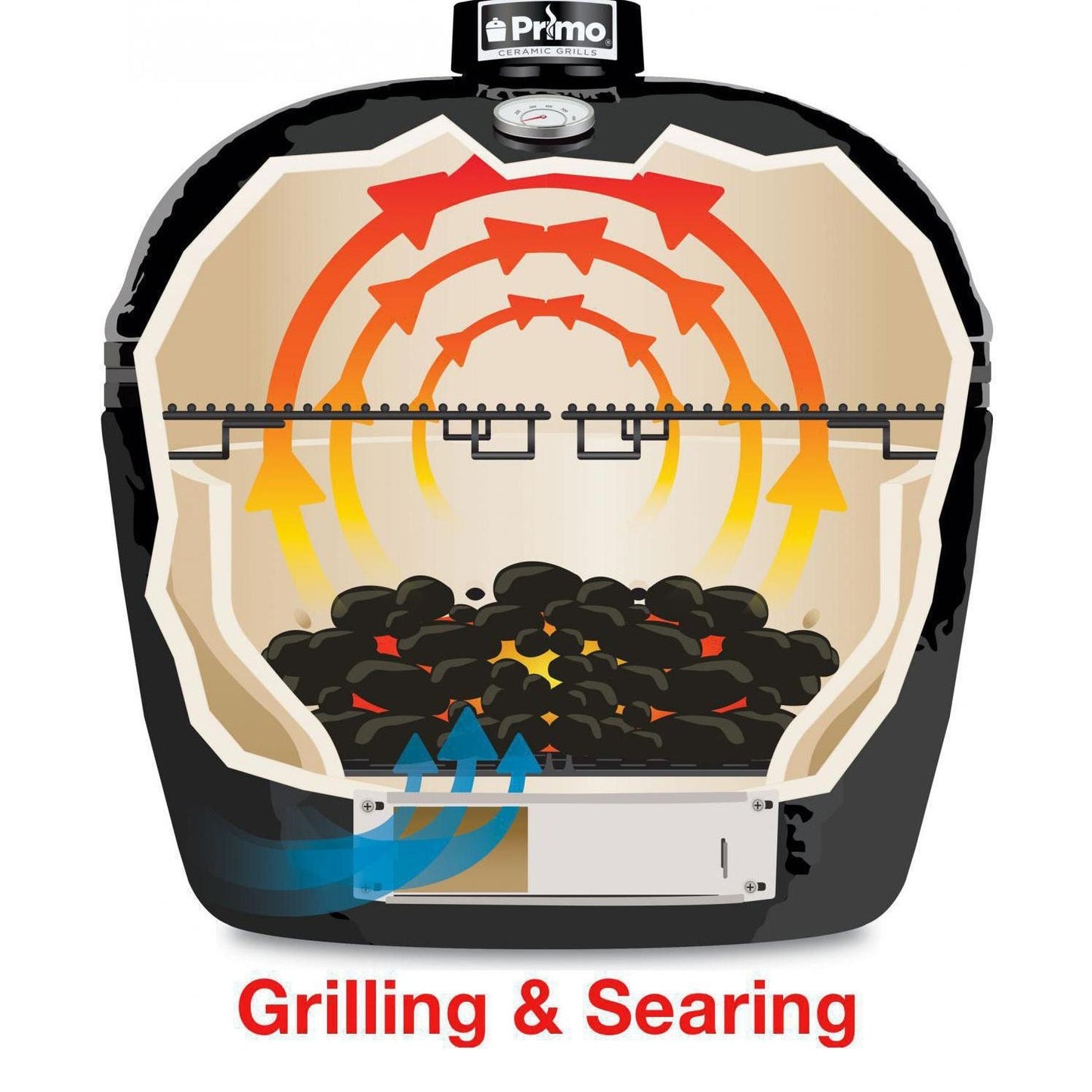

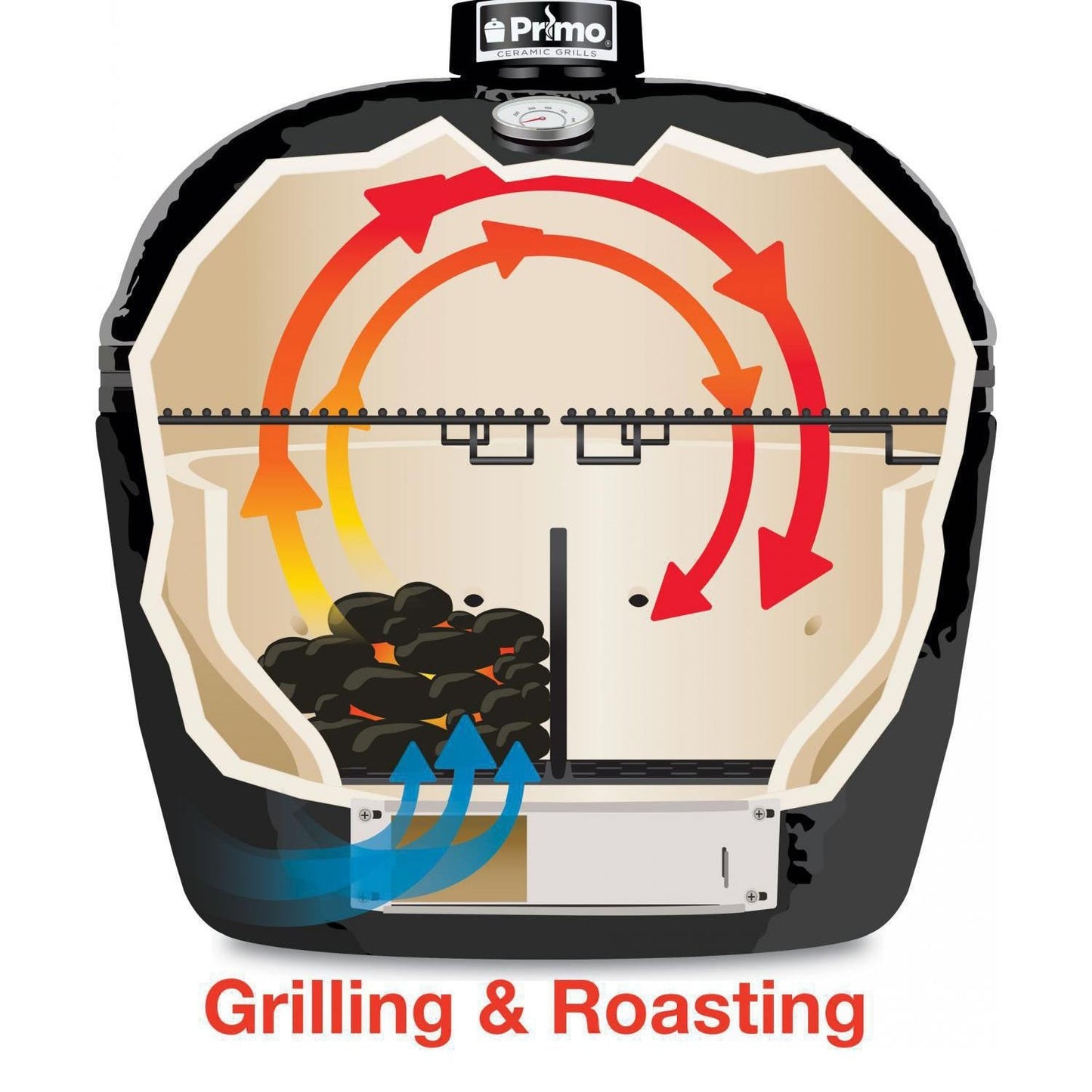

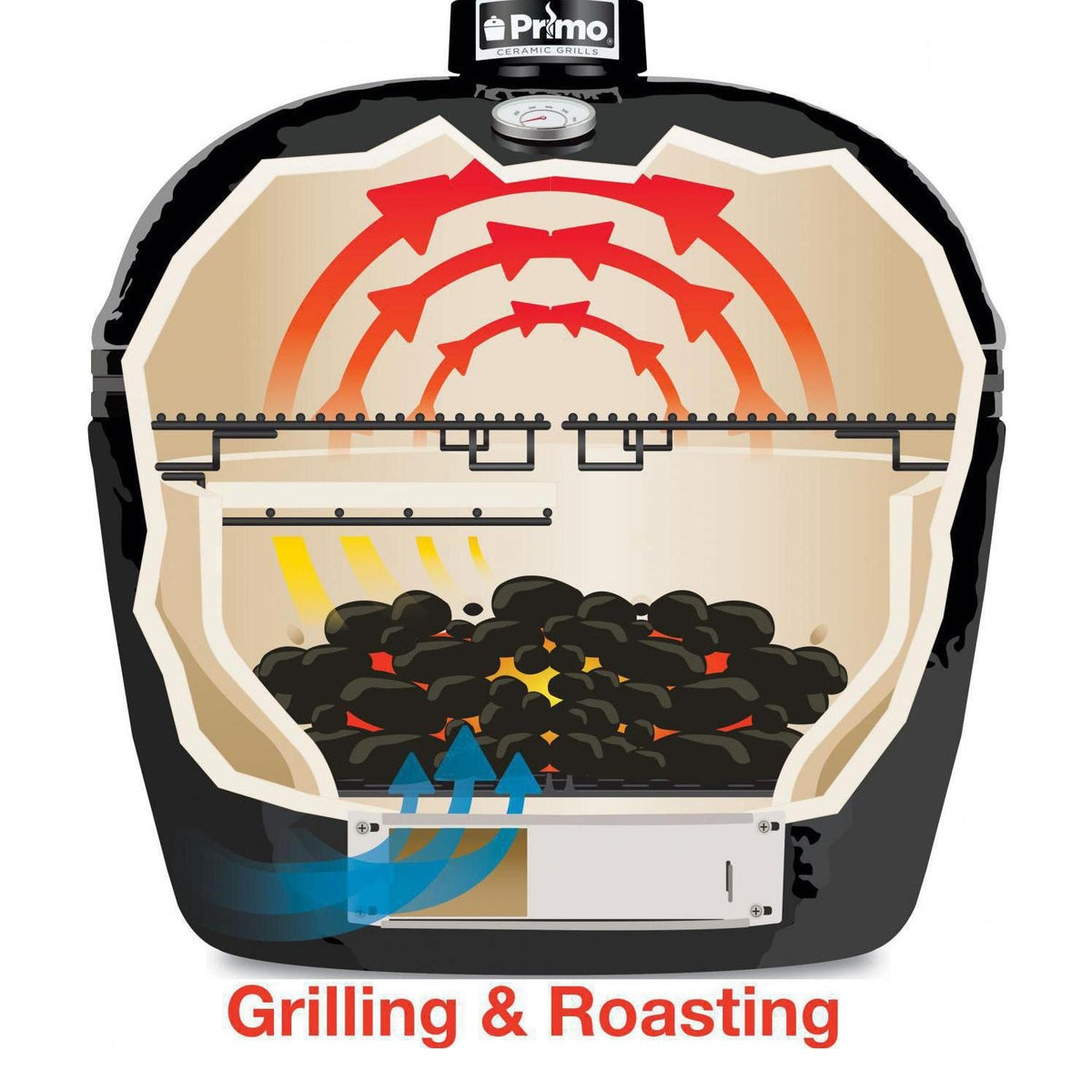

- Cooking setups: direct one-zone grilling and searing, two-zone grilling and roasting, or indirect one-zone baking, roasting and smoking with heat deflectors or racks.
- Reusing charcoal: lump charcoal can be used 2 to 3 times; stir the ash through the fire grate with an ash tool and add about 30% new charcoal.
Care: Primo's warranty requires regular maintenance: clean the ash from the cast iron grates to prevent buildup, clean the cooking grates and cast iron surfaces after each use, and check and tighten the band bolts several times a season and after high-heat cooks. Surface rust, fading and blemishes on metal parts are not covered unless they cause a part to fail.
Warranty
Primo Ceramic Grills warrants the grill to the original purchaser: a limited lifetime warranty on all ceramic parts; a limited 5-year rust-through warranty on all metal parts except cast iron; a limited 1-year rust-through warranty on all cast iron parts and all other parts and accessories unless stated otherwise; and a limited 30-day warranty on felt gaskets and thermometers. Primo does not list separate terms for its wood tables; ask us for the table's coverage.
Conditions: the grill must be installed according to Primo's instructions, with access for service, and you keep a bill of sale or payment record. Replacement parts ship at the purchaser's expense, and the defective part must be disposed of once the replacement arrives. Not covered: damage from use, misuse, improper installation or storage, unauthorized service or parts, lack of maintenance, removal and reinstallation, service calls, labor, travel, diagnostic and freight charges, and metal rust, fading or oxidation that does not stop the grill from working. Claims go through your dealer, with the model number, serial number and proof of purchase; international claims are not accepted. Full terms are on Primo's warranty and parts page.
Manuals and documents
- Primo X-Large Jack Daniel's Edition specification sheet (PDF)
- Primo Quick Start Guide (PDF)
- Primo oval grill unpacking instructions PG1000596 (PDF)
- Primo XL cut-out template, new hinge (PDF)
- Primo product brochure (PDF)
- Primo XL 400 Jack Daniel's Edition product page
- Primo warranty and parts
Legal disclaimers and warnings
Product packaging, owners' manuals, installation instructions, and/or operating instructions may include more information than what is shown on our website. The content on our site is intended to be used for reference purposes only. Please fully read all included manuals and documentation before installing or using this product.
